A transfer case is essential for a Chevy 4×4 vehicle, and you cannot imagine a 4WD without it. They are available in multiple variants and designs. Therefore, it is equally important to identify it while going for a repair or replacement.
You can identify the transfer case on a Chevy 4×4 truck by reading its metal tag or RPO code of the transmission under the dashboard. It contains information about its model number, serial number, assembly number, and low-range gear ratio. You can visually identify it by looking for options like manual or automatic shift, 1-speed or 2-speed setting, chain or gear-driven design, and the number of speed sensors.
We will also discuss commonly used transfer case models in Chevy pickup trucks like Silverado 1500, 2500, and 3500.
- 1 What is a transfer case and its function?
- 2 Different transfer case models for Chevy 4×4 vehicles
- 3 How to identify the Chevy 4×4 transfer case?
- 4 Can you visually identify a Chevy transfer case without its tag?
- 5 Are all transfer cases the same for Chevy 4×4 pickup trucks?
- 6 How to identify 1 or 2-speed transfer cases?
- 7 How to differentiate between gear-driven and chain-driven transfer cases?
What is a transfer case and its function?
A transfer case is the basic part of a drivetrain of 4×4 pickup trucks. They are in use in 4WD vehicles only because their primary purpose is to transfer power evenly to all 4 wheels.
They aim to evenly share the engine power coming through transmission between both front and rear axles.
They have several designs and types available according to their driving mechanism, the material of construction, gear ratio, single or multiple speeds, and other factors.
They have special applications for off-road usage. It is because they have the ability to lock front and rear shafts together to evenly distribute the torque to all 4 wheels providing better traction.
You will find them gear-driven or chain-driven to transfer power to the output shaft. Chain-driven are the latest models because of their lightweight and quieter operation to improve fuel economy.
There are 2 other categories based on their full-time or part-time operation. A full-time transfer case is always in 4WD mode, and no intervention of the driver is required to switch the system.
The part-time transfer case allows the driver to select between 2WD and 4WD options according to the road conditions.
Older transfer cases have cast iron construction, making them solid and heavier, with fewer maintenance issues.
However, recent models have aluminum and magnesium-made designs to reduce weight and improve fuel economy.
Different transfer case models for Chevy 4×4 vehicles
Various transfer case models are available that are compatible with Chevy 4×4 vehicles, including heavy-duty pickup trucks like Silverado 1500, 2500, and 3500.
For example, the NP 261 transfer case is in use for heavy-duty applications for 4×4 pickup trucks from 1999-2007 models. It has a chain-driven design and a low gear ratio of 2.72.
It is available in 3 variants, including light duty (LD), heavy-duty (HD), and extra heavy duty (XHD), with wider chains and other parts according to the intended applications.
NP 263 is an upgraded version of NP 261 with an electric shift instead of a manual one and operates by a chain-driven mechanism.
It also has 3 variants with HD and XHD models, with wider chains, sprockets, and 6 pinion planet to withstand higher stresses.
Both models have design flaws, like holes in the case due to oil pump rub and shaft damage due to heat buildup in the transfer case.
NP 246 also fits in Chevy 4×4 vehicles and has variants available according to the VIN. It has an aluminum construction and a splined shift selector. Its specifications also vary according to the transmission model and vehicle.
How to identify the Chevy 4×4 transfer case?
It is essential to identify the transfer case on your vehicle while doing repair work or replacing it for an upgrade.

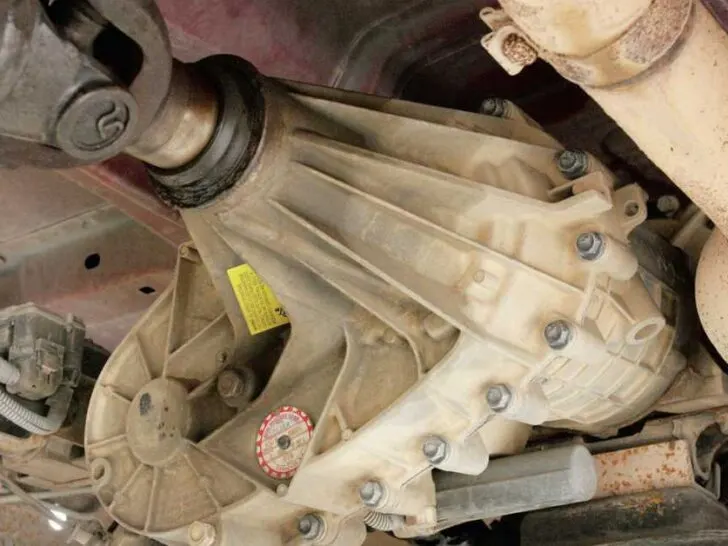

Each transfer case has a small round metal tag screwed on its body on the back half at the bottom. It has 4 identification numbers, including its model number, assembly number, serial number, and low gear ratio.
The first number indicates the model number of the transfer case, with each letter or digit specifying its features. For example, you will see 263 HD GM as the model number on Chevy 4×4 vehicles.
Here 2 indicates 2-speed, 2nd digit 6 indicates its use for trucks, and 3 indicates electric shift. HD is for the heavy-duty variant, and GM or C indicates the vehicle’s manufacturer.
Below the model number, you will find an 8-digit assembly number assigned at the factory during its manufacturing.
Next is the 6-digit serial number that indicates its date of manufacturing and shift code.
The last one is a 3-digit number mentioning the low-range gear ratio. For example, a number like 272 shows a gear reduction of 2.72:1 between the input and output shaft.
You can also identify the transfer case by reading the RPO code under the dashboard of your vehicle.
Can you visually identify a Chevy transfer case without its tag?
You can visually inspect and identify if a transfer tag missing or unreadable. You should check the number of output splines and narrow or wide teeth on the planetary gear and input bearing width.
Other identifiers are the type of shift, whether electric or manual, the location of speed sensors, and their number and shift pattern.
You can also identify it with the help of the type and location of the shift switch, the transmission installed, its RPO code, and the shape of its case assembly. 1-speed or 2-speed settings can also be helpful to identify this,
Are all transfer cases the same for Chevy 4×4 pickup trucks?
No, there are different transfer cases according to their available features and compatibility with transmission systems.
Moreover, they also have multiple variants for the same model according to the strength and construction of the parts.
For example, you will find NP 261 and 263 in LD, HD, and XHD variants.
Moreover, the NP 246 transfer case with a 27-spline output shaft will be compatible with transmission having an RPO code of M30 and 32-spline output for RPO code MT1. Therefore, it is essential to identify it before swapping between the same vehicle models.
How to identify 1 or 2-speed transfer cases?
If your Chevy 4WD truck has low and high gear settings, then it has a 2-speed transfer case.
It helps get higher torque for off-road applications. If your vehicle lacks high or low-speed settings, it is a 1-speed transfer case.
Furthermore, you can also identify it from its metal tag. The first digit of the model number indicates its speed setting. If the first digit is 1, it is for single speed, and 2 is for a 2-speed transfer case.
How to differentiate between gear-driven and chain-driven transfer cases?
Gear-driven transfer cases are old technology but suitable for high power and extensive off-road purposes. They use gears to transfer power to the axles.
They are pretty heavier and have a louder operation than chain-driven types. Moreover, you can differentiate it with the help of the number of bolts on its case.
Chain-driven transfer cases are lighter, have a smoother operation, and are durable. You will find them on all recent models due to their compact size and an effort to improve fuel economy.
