Lug nuts are essential to secure the wheels of Toyota Tundra pickup trucks in their place and ensure their safety and reliability during your journey. For wheel replacement, you should carefully inspect their bolt pattern and other physical dimensions.

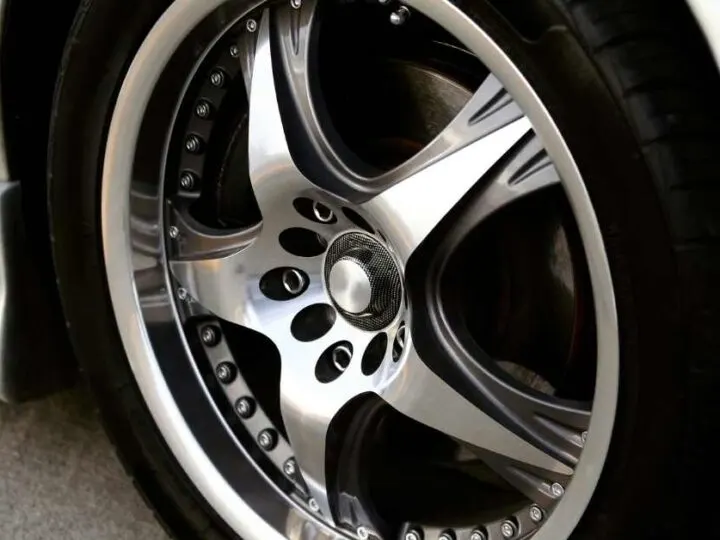

What is the Bolt Pattern on a Toyota Tundra? According to our research and customer reviews, the bolt pattern on Toyota Tundra is 6×139.7mm (5.5 inches) for 2000 to 2006 and 2022 models. In comparison, 2007-2021 models in the 2nd generation have a more common 5x150mm (5.9 inches) bolt pattern. They have M12x1.5 and M14x1.5 thread sizes accordingly. For successful wheel interchangeability, it is crucial to have a compatible center bore size besides the lug nut pattern. Torque requirements for lug nuts are 81 to 85 lb-ft for 2000-2006 models. While for 2007-2021 model trucks, aluminum wheels’ torque settings are 95 to 99 lb-ft while steel ones have 153 to 155 lb-ft to tighten them.
We will also discuss other aspects of the lug nuts installation, including their torque settings, frequency of their inspection or replacement, and compatible head shape.
- 1 The year-wise bolt pattern on a Toyota Tundra
- 2 Physical dimensions of Toyota Tundra lug nuts
- 3 What are the torque requirements to tighten the Toyota Tundra bolts?
- 4 Can Toyota Tundra with the same bolt pattern have a different center bore?
- 5 What other vehicles have a compatible bolt pattern with Toyota Tundra?
- 6 Do all trim levels of Toyota tundra have the same bolt pattern?
- 7 Do Toyota Tundra lug nuts follow metric or standard units?
- 8 Seat types of Toyota Tundra lug nuts
- 9 Is it safe to put grease or oil on lug nuts?
- 10 Signs of faulty lug nuts on Toyota Tundra
- 11 How often do you replace lug nuts on Toyota Tundra?
- 12 How much does it cost to replace lug nuts on Toyota Tundra?
The year-wise bolt pattern on a Toyota Tundra
Tundra has 2 different bolt patterns for model years from 2000-present. The 1st generation, from 2000 to 2006, has a pitch circle diameter (PCD) of 6×139.7mm or 5.5 inches.
It means it has 6 lug nuts arranged on a notional circle with a diameter of 5.5 inches or 139.7mm.
However, later models in the 2nd generation from 2007 to 2021 have 5 lugs arranged in a broader circle with a diameter of 150mm or 5.9 inches.
Therefore, they have a bolt pattern of 5x150mm (5.9″). Moreover, the 3rd generation model from 2022-onwards has a 6 lug pattern with a diameter of 139.7mm (6×5.5″)
Physical dimensions of Toyota Tundra lug nuts
Their physical dimensions include their diameter and thread size. They should match with OEM studs for a successful replacement.
The 2000 to 2006 models have a thread size of M12x1.5. It means that 12mm is the diameter of the lug, and 1.5 is the thread pitch or length of a thread in millimeters.
Later models from 2007-2022 have slightly larger lug nuts having a size of M14x1.5.
Therefore, you should have the compatible diameter and thread pitch to fit these on any model perfectly.
What are the torque requirements to tighten the Toyota Tundra bolts?
It is essential to tighten the lug nuts according to the manufacturer’s recommended torque settings to ensure safety and prevent wheel damage.
Requirements can vary according to its models and wheel rim type. Torque requirements are 81-85 lb-ft for 2000-2006 models.
While for 2007-2021 model trucks, it can vary according to aluminum and steel wheels.
For aluminum wheels, torque settings are 95-99 lb-ft, while steel rims require more 153-155 lb-ft torque to tighten these.
Can Toyota Tundra with the same bolt pattern have a different center bore?
The center bore is an opening in the middle of the wheel to make it aligned with the hub center.
Usually, it remains unchanged for truck models having the same design. The reason is that as it is in the center of the imaginary circle formed by the lug nuts, its size remains the same according to the PCD.
For the 2000-2006 models, the center bore has a diameter of 106.1mm (4.18 inches). Late models from 2007-onwards have a center bore size of 110.1mm (4.33 inches).
This is because the wheels must be hub centric to prevent any vibration. It also matters for the safety of lugs to prevent extra stresses and load of the truck on the studs.
What other vehicles have a compatible bolt pattern with Toyota Tundra?
Several vehicles from other manufacturers share the bolt pattern with Tundra.
A few examples of Vehicles having a 6×139.7mm bolt pattern are Cadillac Escalade from 2002-2022, Chevy Silverado 2014-2022, Chevy Avalanche 2007-2013, Ford Ranger 1999-2022, GMC Sierra 1500 1988-2022, Toyota Tacoma 1995-2022 and Toyota Sequoia 2001-2007.
Other vehicles having the 5x150mm bolt pattern include Toyota Sequoia 2008-2022, Land Cruiser 1998-2022, and Lexus LX 1998-2022 models.
However, despite sharing the same design, wheels from other manufacturers do not necessarily fit these trucks.
The reason for differences in their center bore and other parameters like offset. Therefore, it will require modification to swap the wheels between two vehicles.
You can also use wheel adapters and spacers to match the necessary specifications for their replacement and other relevant parts like brakes and suspension parts interchangeably.
Do all trim levels of Toyota tundra have the same bolt pattern?
Toyota Tundra pickup trucks are available in 2 to 7 trim levels from 2000 to 2022.
The first model has 2 variants, including SR5 and Limited, while the latest model has 7 trims, including SR, SR5, Limited, Platinum, TRD Pro, Capstone, and 1794 Edition.
Each model is subdivided into multiple variants according to bed length and cab and drive configurations.
However, there is a difference in the shape or seat type of aluminum and steel wheels. Steel wheels have lugs with acorn or tapered heads, while aluminum wheels have flat-headed nuts.
All trim levels except SR have aluminum wheels. Therefore, SR trims on the 2022 model can have different lug nuts compared to other trim levels in their shape.
Do Toyota Tundra lug nuts follow metric or standard units?
Toyota Tundra follows a metric system of units for lug nuts, bolts, and hex size. Therefore, you will find its bolt pattern mentioned in millimeters.
However, corresponding standard size patterns are available in the market, and you can use them interchangeably.
For example, the 6×139.7mm bolt pattern in the metric system has an equivalent of 6×5.5″, and both are the same.
Similarly, the counterpart of 5x150mm in standard form is 5×5.9 inches. Some people confuse 5×5″ and 5x150mm as matching patterns.
Still, both are different due to size differences, and you cannot interchange the two wheels with each other.
Their thread size also follows the metric system. Compatible sizes are M12x1.5 and M14x1.5.
They have equivalent sizes in standard form, 7/16″ and 9/16″. Although they are not precisely equal but close to each other and you can interchange them
Seat types of Toyota Tundra lug nuts
Besides ensuring the thread size of lug nuts, you should also check for its seat types. The most common of them are in conical-shaped tapered style.
It is also called the acorn type with a bulging head. Other types are shank style or mag seat design. Finally, it has a flat seat and requires a washer for its installation.
Moreover, you will find mag shank nuts compatible with the SR5 trim level of Toyota Tundra.
TRD Pro trim has aluminum alloy wheels and requires flat or mag seat lugs for proper installation.
At the same time, other options are spline drive and radius or ball-shaped double-ended lug nuts.
You will find them made of aluminum and titanium with forging to increase their hardness and strength.
Is it safe to put grease or oil on lug nuts?
Some truck owners use any lubricant or anti-seize agents specifically available to prevent rusting and their locking due to wear and tear and corrosion.
However, experts recommend not to use them while installing the lug nuts. This is because the torque ratings for their installation are for clean and dry threads.
With lubrication, due to reduced friction, there are chances of over-tightening them, resulting in stud breakage or extra stresses.
Therefore, cleaning and drying the nuts before installation is a good practice to prevent friction between the threads and avoid using anti-seize chemicals, grease, or WD-40 spray.
Signs of faulty lug nuts on Toyota Tundra
It is essential to torque the lug nuts correctly according to the manufacturer’s recommended specifications.
If you don’t install them properly, you will observe symptoms like excessive vibration, swollen lug nuts, any of them stripped away, broken studs, and damage to the wheel rim.
In severe cases, wheels can come loose from your vehicle resulting in a severe accident.
Moreover, you have to pay heavy fines in US states for a wheel coming off your automobile due to slack nuts or bolts.
Furthermore, you should check them after driving 30-50 miles to ensure any of them are not coming loose.
How often do you replace lug nuts on Toyota Tundra?
Lug nuts of good quality are of metals like chrome-plated steel, aluminum, and titanium. Therefore, they have a longer service life of more than 5 years if properly installed.
However, improper installation like overtightening can increase pressure on them, resulting in swelling or stripping before their useful life.
Rusting and high temperatures are other factors that can cause these to wear out quickly.
Therefore, I recommend inspecting them during regular preventive maintenance or oil change. Ask the mechanic to check their torque and tighten them according to specifications.
Moreover, you should go for replacement if you observe any symptoms like rusting, swelling, or damage to threads.
How much does it cost to replace lug nuts on Toyota Tundra?
The price of Toyota Tundra lug nuts varies according to its seat type and material of construction.
You can buy a single piece for $4 to $8. For a 5-lug pattern, it has 20 of them to install.
Therefore, you will need $80-$160 to purchase a complete set. They are easier to replace, and most people prefer to do it by themselves.
Otherwise, you have to pay $60-$80 labor charges for the complete task.
