Where is the Kingpin Located on a Semi-Truck?

Where is the Kingpin Located on a Semi-Truck?

The semi-trucks are used to haul heavy objects from one place to another. The trailer contains tons of weight, and the tractor pulls the weight for transportation. Kingpin is used in these heavy trucks to connect the tractor and trailer.

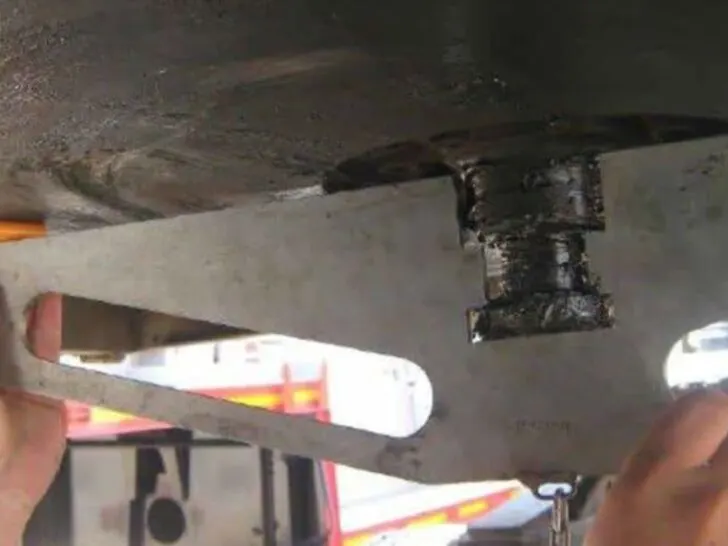

Where is the Kingpin Located on a Semi-Truck? Kingpin is located on the front end of the semi-truck trailer. These join the trailer and tractor and support the semi-truck while taking turns. Bolted and welded are its two types. Inspect the pin and skid plate regularly and lubricate it for maintenance.

A worn-out kingpin is hard to couple and uncouple with the fifth wheel adjustment. Replace it after every 5 to 6 years for proper functioning.

Each model of the semi-trailer has a specified shape and size of the kingpin. You should consult a specialist to get it serviced. Consider the durability and safety of these components to ensure a safe drive.

What does the kingpin do in a semi-truck?

The trailer and tractor are the two main parts of a semi-truck. They should be joined together firmly to keep the vehicle safe on the road. Kingpin is also called the pivot point in a truck.

It is used to connect the tractor and trailer of a semi-trailer. It is also a part of the fifth wheel connection and determines the turning radius of the vehicle.

It also has a significant role in the handling and steering of the coupled rig. It joins the trailer and tractor to allow the truck to turn safely.

Any problem with the kingpin can cause issues in the steering system of the truck. These issues can be dangerous and result in accidents due to the wrong turning of the wheels.

These are usually made from steel or other durable material. They also come in various dimensions and shapes.

What is the location of the kingpin on the semi-truck?

The mounting position of the kingpin can have a large impact on the safety and stability of the semi-trailer on the road. It is usually mounted on the bottom of the trailer. It consists of a large steel plate that is attached to the end of the trailer.

A metallic cylindrical pin attached to this steel plate is called a kingpin. It is about 4 to 5 inches long and 2 to 3 inches wide.

It is usually mounted 20 to 45 inches from the trailer nose. They are attached to the semi-trailer and are fixed to the tractor using a fifth-wheel coupling device.

Different types of kingpins

These are divided into different types depending on their assembly forms. Here is a brief description of all of them. All these types can have different sizes and shapes.

Bolted type kingpins

This type consists of an interchangeable head, a retention place, and securing bolts. In this type, the retention plate is welded to the trailer skid plate, and then the interchangeable head is fixed to the retention plate through self-securing bolts. It is available in two sizes 2 inches and 3.5 inches.

The raw material used in this type of king plate is Cr. It is easy to replace due to the presence of bolts.

Just unscrew the bolts and remove the worn-out head. The skid plate thickness is 14mm, 12mm, and 16mm. It usually undergoes tampering and quenching treatment for durability.

Welded type kingpin

As the name indicates, it is welded to the skid plate of the trailer. It is not replaceable. It is difficult to maintain and can suffer from damage due to wear and tear.

It is also available in two sizes 2 inches and 3.5 inches. The raw material used in it is Cr, Ti, or Mn.

The skid plate thickness is also 12mm, 14mm, and 16mm. It also undergoes carburizing and quenching treatment to increase wear resistance.

How to maintain kingpins in a semi-truck?

These are essential parts of semi trucks and require special care and maintenance. You need to keep a check on their performance and structure to make them long-lasting.

Like all other things, these tiny components are also susceptible to damage due to mishandling and daily wear and tear. But following these tips will help you to take care of such critical components in a good way.

Regularly check the kingpin and the skid plate for any scars, rust, or cracks. Fix all these minor flaws on time to maintain its functioning. Clean the skid plate and its bolts to remove all the dirt and foreign objects from the bolt’s hole.

The diameter of the pin decreases due to friction between the pin and the lock hook. Measure the diameter regularly and replace it when it reaches the wear limit. The wear limit depends upon the diameter of the kingpin.

Lubricate it on a tie to reduce friction between components. But be careful about the oil sludge around the pin.

It can cause damage to the metal of the pin. Clean all the excess lubricant and sludge around it to keep it functional.

How do I know if the kingpin on a semi-truck is worn out?

The kingpins can also get faulty due to many issues on their part. The vehicle shows many signs to communicate the problem with its parts.

A bad or worn-out kingpin can cause pull in the steering and uneven front tire wear. It also results in incorrect vehicle alignment. These pins are used to couple the trailer and tractor of a semi-truck.

However, a defect in this part will result in difficulty in coupling the join with the fifth wheel. It happens due to a bend in the cylindrical pin. You will feel difficulty in coupling the trailer and tractor with each other.

The trailer and tractor are also hard to uncouple due to defects in the kingpin. Both these conditions can cause the vehicle to be unstable on the road. It is because it is no longer supporting the trailer.

Improper lubrication also causes premature wear on its surfaces. A visible decrease in the diameter or distortion in the alignment also shows the kingpin is going bad.

Another symptom of a worn-out kingpin is difficulty in tightening the fifth wheel adjustment. It can happen due to worn-out shoulders and throat.

How often to replace a kingpin on a semi-truck?

The kingpins are made from durable material and have a high life expectancy. According to SAE statistics, these can wear for up to 1/8 inches within ten years.

These metallic parts can last for more than 12 to 14 years, according to SAE statistics. But, various other factors can accelerate the wear and tear in these parts. It is ideal to replace it every 5 to 6 years to maintain the function and stability of the vehicle.

The condition of the roads and other environmental factors can contribute to its wearing. The cargo weight and the age of the trailer can also cause damage to it. Any defect in the installation of the kingpin on the semi-truck can also make it wear faster.

Consider the loading capacity of the pin and the thickness of the skid plate before replacing it.

Both these factors should correspond to each other for proper installation. If these two values are not coherent, then they will not support the trailer and tractor coupling.
