Do Manual Cars Have Torque Converters?

Do Manual Cars Have Torque Converters?

Many people want to know if manual transmission cars have torque converters or not. Each vehicle has a manual or automatic transmission system to transmit power from the engine to the wheels.

Do Manual Cars Have Torque Converters? Manual cars do not have torque converters; instead, they have a clutch system to shift the gears. These use fluid to transmit the rotational power, and clutches use centrifugal force to deliver the power. The clutches have fixed gear ratios, while torque converters have variable ratios. Only automatic cars have torque converters, and some automatic vehicles can also use continuously variable transmission. Electric cars do not have torque converters; they use the motor to deliver the necessary force to run the wheels.

It is a vehicle component that connects the power source to the driven load.

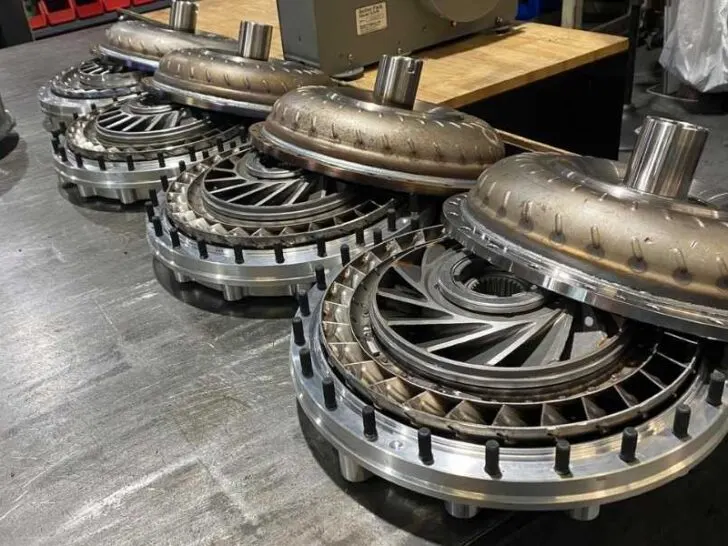

What is a torque converter, and how does it work?

It is a type of fluid coupling that transfers rotational power from the engine to the transmission.

It multiplies the torque and transfers it to the transmission of the vehicle. It has two types one is a single-stage torque converter, and the other is a three-stage torque converter.

It is a doughnut-shaped component and is present between the engine and transmission. It uses a fluid to transmit rotational power from the engine to the load.

When a vehicle is stationary, it separates the engine from the load and allows it to run even when the vehicle stops. It has three main parts pump stator and turbine.

It is connected to the engine through a flywheel. The flywheel causes its casing to rotate at the same speed as the engine is rotating.

Next, the pump is connected to the casing and starts rotating at the same rpm.

The pump produces a centrifugal force that causes the fluid present inside the converter to go out. The fluid then flings the fins of the turbine, and the turbine starts spinning at the same speed.

The turbine transfers the rotational power to the transmission of the car.

The fluid exit the turbine from the opposite direction than the ump is rotating. If it exists in the same direction, it will slow down the engine speed.

The stator is present in its center. It causes the fluid to fling back to the turbine as it tries to go back to the pump. In addition, it has sharp blades that reverse the direction of the fluid inside the converter.

What do manual cars use in place of the torque converter?

Manual cars do not use torque converters for isolating the engine from the transmission.

Instead, they have a clutch to let the engine run even when the wheels are not spinning. As a result, it is not automatic, and the driver has full control over it.

When we press the clutch, it disconnects the engine from the transmission. Therefore, it inhibits the transfer of power from the engine to the transmission.

It allows the driver to stop at stoplights without turning off the engine. It also enables the driver to shift gears smoothly. Power will be transferred to the transmission to drive the load when it is not pressed.

How does the clutch system work in manual cars?

The clutch system of the cars has four parts the cover plate, pressure plate, clutch disc, and release bearing. It works due to the friction produced between these two parts.

The flywheel is connected to the engine, and the clutch plate is connected to the transmission.

The pressure plate keeps the clutch assembly together. The disc allows the flywheel and pressure plate to connect and disconnect smoothly.

The pressure plate exerts a lot of force on the clutch disc using a diaphragm spring.

The disc is attached to the splined shaft that transmits rotational power to the gearbox. The pressure plate has friction lining on both its sides.

A spring pushes the pressure plate against the disc when the pedal is not pressed. It then presses the plate to the flywheel.

The pressure plate clamps the disc to the flywheel. So the power is transferred to the transmission, and it revolves at the same speed.

Is the torque converter better than the clutch system?

The torque converter and clutch both have the same purposes. However, in some situations, it is more suitable than a clutch.

A clutch system uses a centrifugal force to engage and disengage the engine and transmission.

It is ideal for high-end torque and has fixed gear ratios at all RPMs of the wheel. They are easy to maintain, and the driver has full control over them.

They are more fuel-efficient than the torque converters, that has poor fuel economy. Therefore, they are suitable for driving at low to medium speed. The clutches are cheaper, but you need a lot of practice to handle them.

These are ideal for low-end torque and are suitable when you need to stop frequently while driving.

They have variable gear ratios and are easy to operate. You should have them when planning to go for medium to high speed. However, they are more expensive than clutches and are challenging to maintain.

Do all cars have torque converters?

No, only automatic cars have torque converters. All manual cars use the clutch to isolate the engine from the transmission.

These are part of the automatic transmission. But there are some exceptions in automatic cars that do not use torque converters. For example, some automatic vehicles have a dual-clutch system to shift the gears.

It is an automated manual transmission system that uses two clutches. Both are computer operated; there is no need for clutch pedals.

Some other vehicles have continuously variable transmission system that is also automatic transmission.

But is it different from the standard automatic transmission? Unlike automatic cars, it does not have variable gear ratios. But it has one gear that is variable for all driving conditions.

Do electric cars have torque converters?

No, electric cars do not have torque converters. Instead, they have an electric motor to transmit torque to the wheels.

The motors can spin at high RPM and produce a consistent torque at any RPM. The electric motor generates the power through an electric current to spin the wheels.

The electric cars do not have variable gear ratios, but they use only one gear. Therefore, they do not need a specific revolution band to produce torque. They can produce instant torque even at 0 RPM.
