The stereo system and its components of Toyota RAV4 vary according to different generations of the SUV from 1995 to 2023 models. Therefore, knowledge of speakers’ wiring and their color codes is crucial in their installation, troubleshooting problems, and ensuring proper functionality and optimal audio performance.
Speaker wire color codes for 1995-2000 Toyota RAV4 models are light green (+ve), blue (-ve) for the right side, and pink (+ve) and purple (-ve) for the left front doors. For 2006-2012 variants, the rear right door speaker has red (+ve) and white (-ve) wires, while the left side has black (+ve) and yellow (-ve) terminals. 2001-onwards models also have tweeters parallel with front door speakers with the same color codes.
We will also discuss their characteristics, including their sizes, locations, and methods to find the correct wiring diagram.
Toyota RAV4 audio system
The audio system of the Toyota RAV4 varies according to different generations. 1st generation models from 1995 to 2000 have a 6.5-inch 4-speaker system on the front door left and right and rear panel left and right sides.
Next generation 2001-2005 variants have 6 speakers, including a pair of 1-inch tweeter and 6.5-inch speakers in front door panels and a pair in rear door panels. 2006-2012 variants have an 8-inch subwoofer in the tailgate.
The 2013-2018 variants have 6 speakers, including one 3.5-inch mid-range in dashboard corners and 6.5-inch in front and rear door panels. It also has an 8-inch subwoofer in the back side panels.
For 5th generation models, there are 6 speakers with the same locations as the base sound system as in the previous generation. Higher-end trim levels like Platinum and Limited in the latest variants have 11 speakers in the JBL sound system with an amplifier for excellent sound quality.
Purpose of color codes for Toyota RAV4 speaker wires
Color coding of wires is a standard method automobile manufacturers adopt to ensure the correct wiring and traceability despite a change of vehicle ownership. They help us to distinguish between different speaker channels in the RAV4 audio system.
For example, the front left wire has a specific color, and the rear right has a different one. Similarly, each cable has a positive (+) and a negative (-) terminal.
Color coding helps to match each c to its corresponding speaker to ensure accurate sound reproduction and prevent phase issues.
By tracing the specific colored cords, you can troubleshoot and identify the faulty part of the audio system. Furthermore, if you install speakers from third-party manufacturers, wire color codes facilitate their installation.
Speaker wire color codes for different models of Toyota RAV4
Color codes for various model years have differences according to their specific generations because of the upgradation of stereo systems introduced by the manufacturer.
However, there can be some similarities, as speakers in front and rear door panels are standard in almost all years. We will cover the color codes for different years of Toyota RAV4 SUV in each generation.
First generation models (1995-2000)
First generation models from 1995-2000 have 8 wires for front and rear left and right side speakers. Moreover, there are 3 wires for their power supply and ground connections.
| Wire Function | Polarity | Color Code | Speaker size |
| Ground | Negative (-) | Brown | – |
| Constant Power +12V | Positive (+) | Blue with yellow stripes | – |
| Radio Switching Power +12V | Positive (+) | Gray | – |
| Front Right Door Speaker | Positive(+) | Light Green | 6.5 inches |
| Front Right Door Speaker | Negative(-) | Blue | |
| Front Left Door Speaker | Positive(+) | Pink | 6.5 inches |
| Front Left Door Speaker | Negative(-) | Purple | |
| Rear Right Side Speaker | Positive(+) | Red | 6.5 inches |
| Rear Right Side Speaker | Negative(-) | White | |
| Rear Left Side Speaker | Positive(+) | Black | 6.5 inches |
| Rear Left Side Speaker | Negative(-) | Yellow |
Ground is represented by brown, constant power by blue with yellow stripes, and switching power by gray. The front right door’s positive terminal is light green, and the negative terminal is blue.
Conversely, the one on the left door has a pink positive and a purple negative terminal. Moreover, the rear right side speaker features a red positive and a white negative terminal, while the rear left has a black positive and a yellow negative terminal.
Second generation models (2001-2005)
The second generation Toyota RAV4 has the same speaker wire color codes as the first generation. Their polarity is also the same, with only a change of two 1-inch tweeters in the front doors parallel to the front speakers.
The tweeter on the front left has both pink colored wires, while one on the right door has light green for positive (+) and blue for negative (-) terminals.
Since they have a parallel connection, the audio system of the SUV will work even if you disconnect them. Moreover, rear speakers are inside doors instead of side panels, as in 1st generation models.
Third generation models (2006-2012)
The third-generation Toyota RAV4 has an additional 8-inch subwoofer on the rear side of the tailgate.
The rest of the speakers and tweeter have the same size and location inside the front and back door panels as previous generations.
| Wire Function | Polarity | Color Code | Speaker size |
| Front Right Door speaker and tweeter | Positive(+) | Light Green | Speaker: 6.5 inches
Tweeter: 1 inch |
| Front Right Door speaker and tweeter | Negative(-) | Blue | |
| Front Left Door speaker and tweeter | Positive(+) | Pink | Speaker: 6.5 inches
Tweeter: 1 inch |
| Front Left Door speaker and tweeter | Negative(-) | Violet/Purple | |
| Rear Right Door Speaker | Positive(+) | Red | 6.5 inches |
| Rear Right Door Speaker | Negative(-) | White | |
| Rear Left Door Speaker | Positive(+) | Black | 6.5 inches |
| Rear Left Door Speaker | Negative(-) | Yellow | |
| Woofer Left side | Positive(+) | Black | 8 inches |
| Woofer Left side | Negative(-) | Green | |
| Woofer Right side | Positive(+) | Pink | 8 inches |
| Woofer Right side | Negative(-) | Purple/Violet |
Wire color codes for front and rear door tweeters are the same as in the first 2 generations.
However, the woofers for the JBL system on the left side have a positive cable in black and a negative cable in green, while on the right side, it has a positive wire in purple and a negative wire in violet.
Fourth-generation models (2013-2018)
From 2013 to 2018, the main speakers are 6.5-inch in front and rear doors and 8-inch subwoofers in rear side panels.
There is a pair of additional 3.5-inch mid-range speakers on the dash panels. All the stereo system components have the same wiring diagram and color codes as the 3rd generation models. Dash speakers are tweeters, and they are parallel to the front door system.
Therefore, the ones on the right side have light green and blue colored wires for positive and negative terminals, while on the left, they have pink (+) and purple (-) colored wires.
Fifth-generation models (2019-2023)

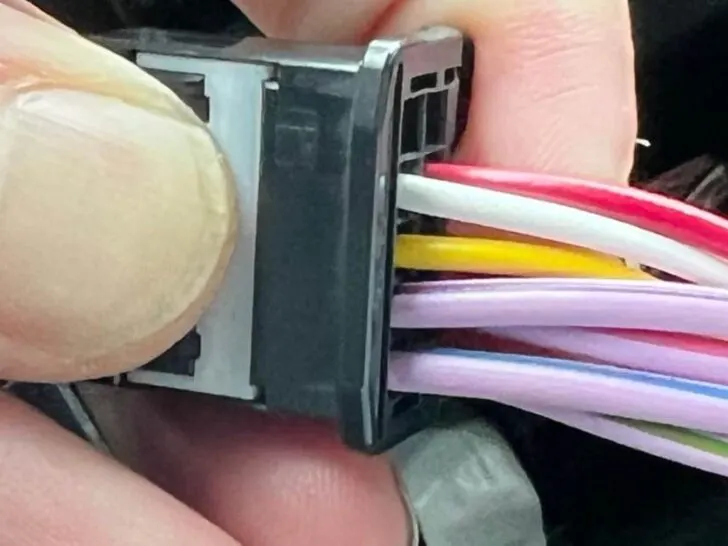

Wire color codes for 2019-2023 models of Toyota RAV4 depend on the type of stereo system and its trim levels. Here is a table for the 6-speaker system installed in front and rear doors without an amplifier and a pair of tweeters in the dashboard.
| Wire Function | Polarity | Color Code | Speaker size |
| Radio power | +12V | Light Green | – |
| Ground | Negative (-) | White with Black stripes | – |
| Radio Switching power | +12V | Gray | – |
| Front Right Door Speaker | Positive(+) | White or Lavender/Lt. Green | 6.5-inches speaker
3.5-inches tweeter |
| Front Right Door Speaker | Negative(-) | Red or Lavender/Blue | |
| Front Left Door Speaker | Positive(+) | Lavender/Black or White | 6.5-inches speaker
3.5-inches tweeter |
| Front Left Door Speaker | Negative(-) | Lavender/Red or Green | |
| Rear Right Door Speaker | Positive(+) | Lavender/Red | 6.5 inches |
| Rear Right Door Speaker | Negative(-) | Lavender/Green | |
| Rear Left Door Speaker | Positive(+) | Lavender/Green or Yellow | 6.5 inches |
| Rear Left Door Speaker | Negative(-) | Lavender/Gray or Brown |
Models with amplifiers as standard on higher-end trim levels have 11-speaker systems instead of 6 on XLE and LE variants.
Therefore, their wiring harness and color codes can vary according to the installed system, and you should look for their service manual to find the correct wiring diagram.
Methods to find the correct speaker wires for Toyota RAV4
The service manual for your specific Toyota RAV4 model year contains comprehensive technical information, including wiring diagrams and color codes.
You can also use online resources such as automotive forums, community websites, or dedicated car audio platforms where people often share their experiences and discuss specific problems. You can also identify these cables using the continuity or resistance function of the multimeter.
The head unit of your stereo system can have labels indicating the purpose of each wire. You can look for markings such as positive (+), negative (-), front right, and rear left, which can guide you in identifying the correct wires.
Toyota’s customer support, dealership, or any expert can also provide accurate and model-specific details regarding wiring diagrams.
Aftermarket stereo system wire color codes for Toyota RAV4
Wire color codes for aftermarket stereo systems in a Toyota RAV4 vary based on their brand and model. Usually, you will find it on the wiring harness or head unit box, which can be different from the factory settings of the SUV.
The yellow cable is for the +12 Volt constant power supply, while the red designates the switching +12 Volt. The black wire is common ground with vehicle chassis to complete the electrical circuit.
The colored pairs provide connections, including white and white with black stripes for the left front and gray with black stripes for the right front.
The rear system has green and green with black stripes wires for the left and violet and violet with black for the right. Solid color distinguishes positive and striped ones for the negative terminals for each speaker.
