The Honda Civic is a famous compact car known for its reliability, fuel efficiency, and high performance. Like all vehicles, the Honda Civic uses a complex electrical system to power various components and systems. One essential aspect of this system is the multiple ground wires, which provide a path for electrical current to flow back to the battery or alternator.

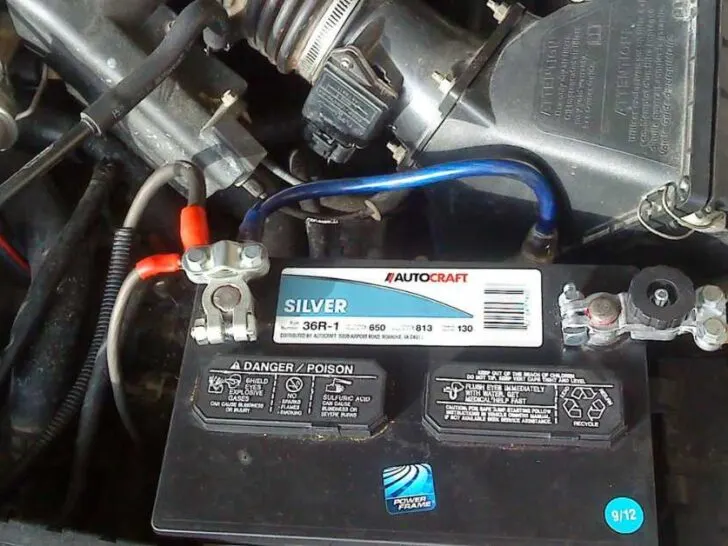

What Are Honda Civic Ground Wire Locations? The ground wires for the 1992-2000 Honda Civic models are located on the negative terminal of the battery, transmission, and valve cover to the chassis. You can find them for 2006-2012 models on the negative terminal of the battery, ECM, defroster, and door ground under the dashboard, alternator, radiator, transmission, cylinder head, and engine block. For the 2016-2023 models, they are located on the battery, alternator, radiator, valve cover, behind the glove box, driver side under the dash, sidewall above the fuse box, and inside the trunk.
In this article, we will discuss the location of ground wires, the symptoms of a faulty ground wire, and their color coding.
Purpose of ground wires on Honda Civic
The purpose of ground wires is to provide a return path for electrical current to the positive terminal of the battery or alternator.
When a component or system in the car needs to draw electrical power, it does so through a positive wire.
The current flows to the part or system, which must return to the battery or alternator through a negative wire.
It provides this return path, allowing the electrical current to complete its circuit and power the component or system.
Moreover, it also acts as a reference point for the electrical system. Therefore, it is an essential electrical system component for its proper working.
Without sound ground wires, you will observe several problems in the electrical system, including engine starting, HVAC system, lighting system, and radio system.
Symptoms of a faulty ground wire on Honda Civic
There are multiple ground wires on a Honda Civic connected with the negative terminal of the battery through the car’s chassis and body.
You will observe several symptoms related to the functioning of the electrical system, indicating a faulty wire.
A few of the most common symptoms are electrical problems, such as flickering or dimming headlights, a weak or dead battery, or issues with the car’s stereo or other electronic components.
Sometimes these problems can be intermittent, occurring only when the vehicle is idling or when you turn on the headlights. While other times they can be persistent, resulting in the non-functioning of these systems.
A faulty wire also results in poor engine performance causing problems such as misfiring or stalling. In addition, you will find it running rough or struggling to start, resulting in a loss of power or acceleration.
Burning smells or smoke from any electrical part of the Honda Civic can also be due to short-circuiting of ground and live wires. If you notice these signs, you should repair the ground wires as a first step.
Color coding for ground wire on Honda Civic
Ground wires on the Honda Civic are usually color-coded to make them easier to identify. It can vary depending on the model year and trim level of the car, but usually, it follows a general convention on most of the model years.
Mostly you will find black or brown wires used for ground wires for the car’s body or chassis. Some models can have black wires with green stripes also.
Another commonly used color for ground wires is green for the car’s electrical system, such as the stereo or lights. At the same time, they are white or gray for sensors or other electrical components.
It’s important to note that the color coding can vary, so it’s always best to consult the car’s wiring diagram or a repair manual to ensure the specific ground wire. Moreover, it can also change if you get a used car and the owner has modified its wiring.
Location of ground wires in Honda Civic
You will find multiple ground wires in Honda Civic depending on its model year, trim level, and special edition. For the 1992-2000 Honda Civic, you will find 3 main ground wires of thicker gauges in the engine bay.
They are from the battery’s negative terminal, transmission, and valve cover on the engine block to the different points on the car’s chassis. 2001-2005 model Honda Civic has ground wire located on top of the transmission cover, on the engine block, on the top of the intake manifold, and a negative battery terminal connected with the chassis on the passenger’s side.
For 2006-2012 models, you will find them attached with the negative terminal of the battery, Engine Control Module (ECM), defroster and door ground under the dashboard, alternator, radiator, transmission, cylinder head, and engine block.
The car’s chassis acts as a common point for all these wires, which then connect with the battery terminal to complete the return path of the current.
For 2016-2021 models, ground wire locations are on the battery’s negative terminal, alternator, radiator, valve cover, behind the glove box, driver side under the dash, sidewall above the fuse box, inside the trunk or rear seats bottom hold-down metal strap.
Some common ground wires in most model years are on the interior, including the one under the dash fuse box on the driver’s side, near the steering wheel, and behind the glove box on the passenger’s side.
Moreover, you will also find them on the rear side connected with the rear axle, shocks, inside the trunk, and spare tire in some models.
Do all Honda Civic models or trim levels have the same ground wire location?
No, the location of ground wires can vary depending on the model year of the Honda Civic and the trim level. For example, a Honda Civic DX has a different location than the Si trim level.
For the 2006-2011 models, you will find them for the taillights and license plate light on the left side of the trunk. However, for the Si model, it has a location on the right side.
Similarly, in the 2012-2015 model years, the wire for the headlights is on the front fenders near the headlights, while for the Si model, you can locate it near the battery.
For the 2016-2021 models, the wires for the fuel pump and fuel level sensor are under the rear seats, while in the Si and Type R models, you will find them in the engine compartment.
Therefore, it’s clear that the location of ground wire can vary for different trim levels within the same model year. Moreover, it can also change in case of modification in the wiring work.
How to check and maintain ground wires in Honda Civic?
You should regularly check and maintain the ground wires in your Honda Civic to keep the electrical system running smoothly. You can do it by checking for signs of damage, such as fraying, cracking, or corrosion.
Using sandpaper to clean the rusty wires and the attached surface will help ensure a good electrical connection. Moreover, you should regularly tighten the loose ground wires to ensure they are securely attached to their respective components and the car’s body or chassis.
You can also use a digital multimeter or test light to check their continuity to rule out breaks or other problems, as they are imperative for providing an excellent electrical connection.
If you find any damaged wires during your inspection, replace them with new ones of the correct gauge of 4 AWG or 8 AWG and color coding.
