How to Detect a Bad IPR Valve on 6.0 Powerstroke?

How to Detect a Bad IPR Valve on 6.0 Powerstroke?

The Ford 6.0 Powerstroke reliable diesel engine in their 2003-2007 F250, F350, F450, and F550 Super Duty pickup trucks. However, like any engine, the 6.0 Powerstroke can develop issues over time, and one of the most common problems is a faulty IPR valve.

How to Detect a Bad IPR Valve on 6.0 Powerstroke? You can detect a bad IPR valve by using 4 methods. You can use OBD-II tools to read error codes P2285, P2290, and P2291 related to a faulty IPR valve. You can also visually inspect it for clogging or damage or use a multimeter to measure its solenoid resistance. Another method can be to read its parameters like duty cycle and injector oil pressure using aftermarket tuners.

It causes several problems, including rough idling, hard starting, poor fuel economy, and loss of power.

Working of an IPR Valve

The Injection Pressure Regulator (IPR) valve is an essential component of the high-pressure oil system in a Ford 6.0-liter

Powerstroke engine for diesel-powered heavy-duty truck models like the 2003-2007 Ford F250, F350, and F450.

It regulates the pressure of the engine’s oil to operate the diesel injectors. It is important in determining the fuel delivery characteristics of the injectors, including the injection timing, fuel quantity, and duration of their opening.

It consists of an electromagnetic solenoid, a valve, and a regulator. The solenoid receives signals from the Powertrain Control Module (PCM) to control the valve’s position.

The valve regulates the oil flow to the injectors, while the regulator ensures that the oil pressure is consistent according to the designed settings.

In case of a damaged or malfunctioning valve, you will observe a few symptoms and error codes on the truck.

Symptoms of a Faulty IPR Valve on 6.0 Powerstroke Engine

A bad IPR valve can cause several problems in your 6.0 liter Powerstroke engine.

Here are 6 most common symptoms a truck driver can experience indicating that it is malfunctioning and needs repair or replacement:

Rough Idling

If your engine runs rough or vibrates excessively at idle, it can be a sign of a faulty IPR valve. It can happen in multiple ways due to malfunctioning of the valve.

First, it can cause inconsistent fuel injection, leading to a lack of power and rough idling.

Second, if it gets stuck closed, it can cause excessive fuel pressure, leading to rough idling, misfiring, and poor engine performance.

If it gets stuck to an open position or is not functioning, it can cause low fuel pressure, leading to rough idling and stalling.

Therefore, if you are experiencing rough idling on your Ford truck, inspecting by a qualified mechanic to diagnose the problem is a good idea.

Hard to Start

A faulty IPR valve can make it challenging to start your engine, especially when it’s cold.

If you notice that your truck is cranking for an extended period before starting, it can be a sign of a malfunctioning valve.

It can cause hard starting by affecting the engine’s combustion process. If it does not function correctly, it can produce too low or too high fuel in the cylinders. Therefore, the incomplete combustion of diesel in the engine makes it harder to start.

Poor Fuel Economy

The mileage of Ford trucks with 6.0-liter Powerstroke engines largely depends on the proper timing and operation characteristics of diesel injectors.

PCM changes the duty cycle of the IPR to maintain the oil pressure according to the reading sent by the injection control pressure (ICP) sensor.

Therefore, in case of a faulty IPR or ICP, fuel injectors can fully open or close beyond the recommended settings.

It can result in extra fuel or little fuel in the cylinders causing improper combustion.

White or Blue Smoke from Exhaust

Any changes in smoke color coming from the exhaust of your diesel-powered Ford trucks is not normal.

If you see blue smoke, it indicates that there is too high oil pressure and the engine is burning oil.

Similarly, white smoke indicates that an excessive amount of fuel is entering the cylinders, and some diesel is going unburnt.

However, the black smoke shows that there is low fuel in cylinders resulting in incomplete low-temperature combustion.

It regulates the oil pressure that controls the fuel injectors. When it fails, the engine can burn excess oil, leading to blue, white, or black smoke from the exhaust.

Loss of Power

It can cause your engine to lose power, leading to poor performance. If it gets clogged or blocked, requisite oil pressure does not build to the injectors to spray fuel in the cylinders.

It can also be due to an injector periodically hanging open due to high oil pressure from IPR.

It results in combustion gasses pushed back into the fuel system through the open injector and starving the engine of fuel pressure.

It can be especially noticeable for power-intensive applications like towing, hauling heavy loads, or going uphill.

Injector Surging

If you notice that your engine is surging or hesitating, it can be due to a faulty IPR valve. It regulates the high-pressure oil used to actuate the fuel injectors.

When it malfunctions, it can cause the oil pressure to fluctuate, resulting in inconsistent operation of the injectors. It forces them to surge, resulting in rapid fluctuation in the diesel injection rate.

In severe cases, you will observe a rough-running engine, poor fuel economy, and even engine damage.

Therefore, if you detect surging or hesitation in engine operation, diagnose the IPR or ICP sensor to repair or replace it.

How to Diagnose a Bad IPR Valve?

Few methods or tools are available to diagnose the faulty IPR valve if you observe any of the above-mentioned symptoms.

Using a few steps, you can confirm the root cause of the problem and go for a solution accordingly, as replacing the IPR valve or ICP sensor is expensive.

Check for Error Codes

You can diagnose it by reading error codes using an OBD-II scanner tool. It can cause a range of error codes, including P2285, P2290, and P2291.

This is because the ICP sensor reads the oil pressure to the injectors and sends a signal to ECM.

Any variation in value beyond the acceptable range results in an error code.

Physically Inspect the IPR Valve

You can also physically inspect the IPR valve and its wiring for any damage or signs of wear.

For example, check the valve’s connector and wiring harness for any corrosion, breaks, or loose connections. ECM controls the solenoid using an electric signal.

For example, its screen often gets clogged or torn due to poor oil quality or contaminants. In that case, you also need to replace the valve.

Test the IPR Valve

You can test it using a digital multimeter to measure the resistance of the solenoid.

Check the manufacturer’s specifications to ensure the resistance is within the correct range. According to the service manual, it should be in the 10.2-10.6 ohm range.

Check the Oil Pressure

Check the oil pressure in your engine using an oil pressure gauge. A low oil pressure reading can indicate a problem.

It should be 500 PSI to fire the injectors. It can go up to 3000-5000 PSI according to power requirements as the duty cycle of IPR changes from 15% to 85%. If these values are not within range, you should replace the valve.

Error Codes Due to a Bad IPR Valve on the 6.0 Powerstroke Engine

It can cause error codes to appear on your OBD-II scanner. As the ICP sensor reads the oil pressure, all error codes related to the ICP sensor can also be due to a malfunctioning IPR.

P2285 error code indicates that the ECM has detected a low-pressure oil system issue. A fuel injection system cannot work with such low oil pressure.

If you get a P2290 fault code, it can also be due to a bad IPR valve. You should check its components like solenoid or wiring as the measured oil pressure by the ICP sensor is lower than the commanded by ECM.

P2291 diagnostic trouble code (DTC), similar to P2290, occurs when injector control pressure is below the threshold level.

It can be due to a damaged IPR valve, ICP sensor, or wiring issue. Therefore, if the OBD-II tool reads this DTC, you should check all these components in the fuel delivery system in diesel-powered vehicles.

Steps to Replace a Faulty IPR Valve

If you’ve determined that your IPR valve is faulty by following the diagnostic steps mentioned, it’s time to replace it.

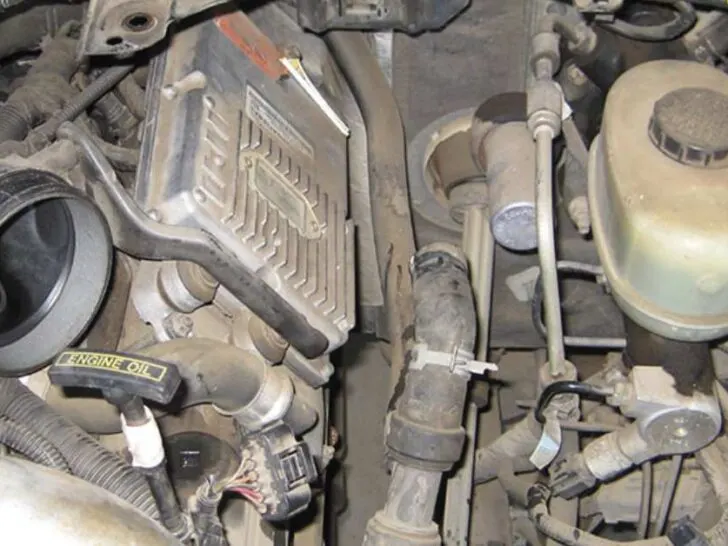

Start by disconnecting the batteries and removing any components that can be in the way of accessing the valve. You can locate it in the engine bay on the back side of the high-pressure oil pump reservoir.

Use a ⅜” socket wrench to remove the valve and connector. Be careful not to damage the threads.

Install the new IPR valve in the same location as the old one, ensuring the proper alignment of threads. You should tighten it to recommended torque settings of 37 lb-ft. Apply clean engine oil on the o-rings of the new valve to maintain a positive seal.

Once you’ve installed it, reconnect the batteries and start your engine to ensure everything works correctly. You can also check its parameters using aftermarket tuners or programmers.

Preventive Maintenance of IPR Valve on 6.0 Powerstroke Engine

It is essential to maintain your Ford 6.0-liter Powerstroke engine to prevent issues with your IPR valve.

Change the oil Regularly

You should change the oil and filter every 5000 miles to help keep it clean and prevent debris buildup in the high-pressure oil system, which can cause issues with the valve. Any contaminant or metallic particles in the oil can clog or damage the valve screen.

Use High-Quality Fuel

High-quality fuel can help prevent its failures as injectors are sensitive to contamination in the oil and fuel.

Inspect the IPR Valve Regularly

Regularly inspect this part and wiring for any signs of wear or damage.

Replace any worn or damaged components immediately. In addition, you can use aftermarket tuning or scan tools to read the duty cycle of IPR and value from the ICP sensor to ensure their proper working.
