The GEM module on a Ford F150 is an electricity supplier and power saver. It handles multiple functions of the truck and understands various commands.

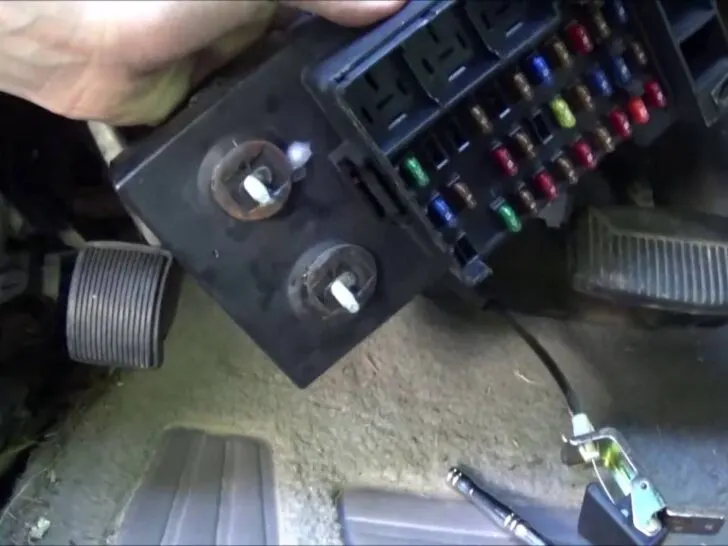

Where is the GEM Module on a Ford F150? In general, the GEM module in Ford F150 is present on the backside of the fuse box. In few variants, it is also available in the fuse panel in the dashboard. The location of the GEM module varies around the central junction box of the Ford F150.

You can access the GEM module in the dashboard section. Next, remove the cover of the fuse box or discard the glove box. It lies behind this structure, and you can find it through Ford’s manual.

Where is the GEM Module on a Ford F150?

The actual location of the Gem module is the rear side of the fuse box. If you do not find it here, then check the surroundings.

It has various locations around the central fuse panel and fuse box. For example, in a 2004 Ford F150, the GEM module is in the fuse panel of the cab. It is in the form of a seam near the steering wheel.

In the 2005 Ford F150, it is inside the fuse box on the backside wall. In the 2019 and 2020 Ford F150, the GEM module is in the dash compartment. Therefore, they are present in the fuse box for the standard controlling features.

The manufacturers keep this system inside the fuse panels. The removal of external covers of the central junction box offers access to the device.

It is always present in the cabin section of the truck. Therefore, it is beneficial to support the electric activities of these compartments.

What is a GEM module?

A generic electronic module is a control unit of truck lights, alarms, and an automatic system. It is a computer that can collect, understand, and then react to the information.

It is beneficial for the user to offer maximum electric supply when the system is off. You can use the electric appliances without the ignition process.

It takes control of all the electric systems from the front to the rear compartment of the Ford F150.

It works on the simple principle of taking commands and interpreting them. The power-saving ability dominates everything.

The relevant switches and button pressing results on the signal transfer. The module access this input data and then redirects it.

It provides the electric energy according to the timers and remains active. The automatic systems are On due to these controlling units.

They are handlers of energy and save it for the future. The truck battery remains secure due to this module.

What are the uses of a Gem Module on a Ford F150?

There are many benefits of the GEM module in a Ford F150. I will explain all of its uses here:

Control of electric windows

Few windows of the Ford F150 have electric systems. Instead, they can move with the electric ability when the user pushes buttons.

The GEM module offers an electric power supply to these windows. Although the electricity is temporary, it has high voltage. They are enough to follow the command of the user.

It also supports the downward movements of the driver-side window. The user pushes the buttons, and this device takes over the process.

The pressing of the window switch is with one touch. This module moves the electric window glass downward to the final position. All of this happens without any manual support due to such advanced systems.

Control of lights

It is beneficial to control the inner lightning of the Ford truck. There is a lamp relay that offers light when a person enters the truck.

The relay section works with the ground circuit. The information and requests travel from one RAP module to the GEM module.

It controls according to the on and off of the entry lamplight.

It also controls the movement of the locks and unlocks lights. It cannot perform the two light effects simultaneously. Instead, send a command to the entry light feature or use the unlock specification.

Control the truck defroster

The defroster of the truck is an electrical device. It not only controls the defrosting device but also modifies the errors. Thus, it works as a diagnostic system for such equipment of this truck.

The defroster takes its command from the relevant switch. Then, the information travels to the GEM module.

 It controls the movement of this structure and works on the commands.

The system also handles the heating of the rear lights. Again, it happens with the switches and their instructions.

When the user presses the defroster switch, then the signal travels from this module. It provides high voltage to the backside windows and defrosters. The voltage also reaches the rear window mirrors.

The system removes the energy from the relay. It stops automatically after the completion of 7 to 10 minutes.

The devices turn off even when the user does not press the relevant switch.

Wipers and windshield control

The system also controls the windshield wipers. It interprets the demand for the wiper switches.

The system works according to commands. For example, they turn off and on with the controlling mechanism.

When a user sends a command from the truck’s steering wheel, then the GEM module selects them. Then, it acts according to the given instructions of the wipers or other washing commands.

The compensation for the moisture also occurs in these systems.

The specific module handles the speed of the relay and the windshield wipers.

It also takes the authority of the washer pump of these wipers. It also dominates the rear window wipers. The washer is not under its control.

Alarms control

The Ford F150 comprises alarming beeps and such devices. This device is a handler of such critical situations and tools.

In case of any error, the system works quickly. First, the user turns on the truck with the ignition key.

The system gets information about the relevant errors. Then, it turns the input into information.

There are small alarming bulbs that link to emergencies. The blinking of these light bulbs offers information about critical conditions. The module handles them with supportive techniques.

It takes less than 2 to 3 seconds. The time is sufficient to control the Ford in serious problems.

Battery activities

The powers saving activities of the battery are under the control of the GEM module.

It offers electric power to the inner lamps and light bulbs of the Ford. The module can supply the energy to the dashboard lamps and door lights for at least 30 to 40 minutes.

It occurs when the Ford is off, and you can use the electric power for these appliances.

It is a battery power-saving mode, and you can adjust its time.

The battery of the truck remains safe in terms of energy-draining. It sleeps during the module functions, and you can enjoy sufficient lighting of the Ford. Moreover, it protects the tool to enhance the shelf life and performance.

Automatic door openings

It handles the automatic door opening of the system. The system takes charge of the commands from the opening switches. The touch tools are efficient in offering orders instantly.

The module understands the command and provides electric energy. It saves electricity from the system and secures it for procedures.

Does the Gem module require programming after installation?

The involvement of vehicle security is not necessary for the programming or reprogramming of it.

The Gem modules have built-in programming from the Ford units.

It comprises the essential functions to capture the commanding signals. In case of any disturbance, check the internal switches. The module has no chance of error due to controlling units.

It only requires programming on the replacements. However, it has various errors that can lead to replacement conditions. According to the manual, you can reprogram the module.

Take the truck to a professional person. Allow him to rearrange the settings for the excellent performance of your device.

The replacement means a new system in the Ford. In addition, it requires expertise to handle and adjoin the module with the Ford settings.

The replacement process of the GEM module takes 15 to 25 minutes. First, remove the glove box from the dashboard area and then access it on the wall of a fender.

In few circumstances, the instructors and experts have another opinion. They say that it may require programming after the installations. On the other hand, it helps them to work efficiently with minimum electric issues.
