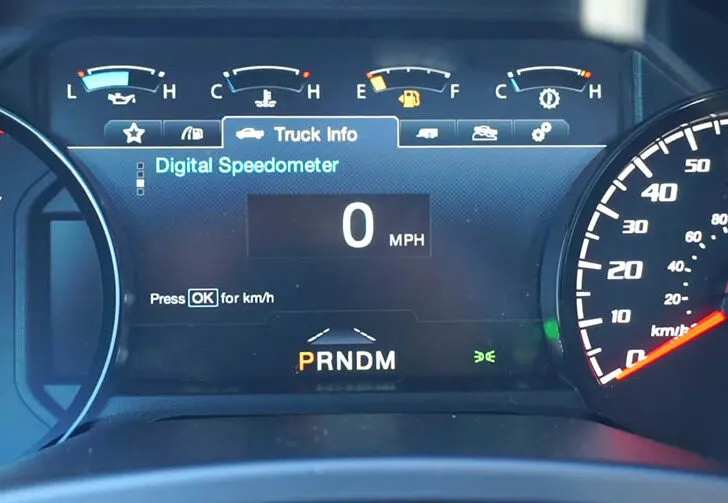

The instrument cluster in a Ford F150 is like a board on which gauges arrangement of dials and lights are mounted.
Why is Ford F150 Instrument Cluster Not Working? In general, the Ford F150 instrument cluster does not work due to shredded gear, computer error, and a defective digital dashboard. Other reasons include failed sensors, blocked circuits, grounding issues, and faulty wiring.
It provides helpful about traveling speed, how much your engine is hot, essential warnings or alarms, oil pressure, plus instrument light are dim or bright.
- 1 Why is Ford F150 Instrument Cluster Not Working?
- 1.1 Faulty digital instrument panel
- 1.2 Damaged fuse
- 1.3 Wiring problem
- 1.4 Shredded gears
- 1.5 Grounding campaign
- 1.6 Broken sensors
- 1.7 Faulty connectors
- 1.8 Clogged circuit
- 1.9 Ford F150 computer error
- 1.10 Signs of a faulty instrument cluster
- 1.11 Is it safe to drive a Ford F150 without an instrument cluster?
- 1.12 Replacement cost
Why is Ford F150 Instrument Cluster Not Working?
Many people complain that the instrument cluster in their Ford F150 stops working, and they are not sure about the exact cause. Here are the main reasons for this issue, along with easy methods to fix it.
Faulty digital instrument panel
When you take all mandatory tests and can not specify there is something wrong with the connections, wiring, or sensor, then unluckily, your pickup has a faulty board.
Few control panels do not have distinct gauges that use to obtain supreme inputs from a particular sender.
You would replace the entire setup with the assistance of a professional.
Sometimes, older trucks may suffer from one or more blown fuses.
You can experience few issues that happen by a damaged fuse such as electrical issues, climate control elements can not operate well, internal or backup light not functioning, unable to employ a radio system.
Shattered fuses make it hard to start your Ford F150. These are significant issues and, there is something false with your computer or harness wiring. As a result, the Speedometer stops working.
All trucks have panels that have fuse inserted that responsible for the electrical connections.
These problems occur when the fuse interferes with the electricity, fades, or warm-up. There are usually two reasons for blown fuses:
- When the truck’s motorist utilizes each appliance as wipers, lights cigarette lighters, and heater, and filled the system at the same time, it cause blow fuses.
- When the fuse gets departed, damage the fuses.
A broken fuse affects the entire instrumental cluster performance.
When your voltage regulator working the process do not well, there might be a fault with the wiring.
With wiring issues, your gauges may exhibit the highest reading of your vehicle.
It is a common sign of detecting whether the instrument has this problem or not. You may notice the console light are dim than usual and, your pickup has a corrupt electrical system.
Only an eligible mechanic can diagnose the issue and competent to rectify them.
You can also take the pickup to a professional who may trace all the issues with an in-depth circuit and identify the actual dilemma.
Impaired speedometer and odometer are usually origins of the stripped gear. A vehicle’s gears are practice to convey the power from one portion to the other.
In a Ford F150, they utilize to transfer the energy from the crankshaft to the driver shaft.
A truck has several gears that engaged together and, they have different sizes and shapes.
Gears perform three functions:
- Improve the speed.
- Change the direction of the vehicle.
- Enhance the force.
The gauges fail when you use a physical cord rather than a speedometer sensor to accurately working.
You have to pull out the digital panel to fix the gears. You should use the microfiber cloth or compressed air to remove the dirt and saturate the plastic.
A grounding campaign can influence the indicators, cluster lights, and gauges.
An awful grounding may cause malfunctioning such as, create noise in audio operation, electronic engine regulators do odd quirks, make power pumps hot, and generate low pressure.
You should make sure while attaching the grounding wires. It should fasten to a position that is free of plating, paint, and rust. Paintwork as an insulator and conclude in a poor ground connection. You would visit the mechanic to fix the grounding issue.
A vehicle has several kinds of sensors. They organized in a way to solve and acknowledged the issues.
These sensors are responsible to accurately process or regulate the level of coolant, oil pressure, emission degree, and temperature.
These sensors are vital for the vehicle to appropriately functioning. In some cases, two or more gauges unable to work which, indicates the issue with sensors.
Typically the most familiar kind of sensor that gets worse is the speedometer detector. Signs of evil speedometer sensors are the machine light activation and loss of power.
You should consult a professional and replace the corrupt sensor. It will back up the performance of the instrument panel.
The vehicle connector that gets loose or unplugged inhibits the instrument panel from appropriately working.
You can examine the fault by tracing the simple circuit. Whenever the connector issue happens, it routs to a console problem.
You should detach the battery, sort out the loose connector, plug them and reattach the battery.
When you successfully solve this, your instrument panel comes back and starts working adequately.
A voltage regulator delivers energy to the digital dash, a clogged or faulty circuit cause to stop the working of the instrument cluster.
With a blocked circuit, the device will not completely stop working. Gauges will become unstable, read incredibly high/low, and act up.
When you jump-start your truck and remove the battery, this can lead to the electrical wand or overcontrolled speedometer.
You should take help from a competent mechanic who will solve the issue without replacing it.
Ford F150 computer error
A computer error regulates the whole process of an instrument board. Sometimes one cable performs two functions at the same time that results in unusual behavior.
It arises from a computer fault that may cause by malfunctioning hardware or software. It is not a big issue that causes to stop working of the digital instrument panel.
You should call a professional who will be capable of fixing the computer system or wiring connections.
Signs of a faulty instrument cluster
You can find the problem by checking various signs and indications.
- Fails lighting and speedometer get entirely dark.
- An alarming seat belt will be disabled.
- The trip odometer quit working.
- Warning signals sound disappeared while opening the door.
- The tachometer speedometer does not.
- They stuck needles of a speedometer.
- No notification is receiving from the vacant tank.
- The display can not process.
- Various or all lights are flickering.
- The threat buzzer switches off.
- Inappropriate gauge reading.
Is it safe to drive a Ford F150 without an instrument cluster?
Yes, you can travel locally without an instrument display, but you can not run the vehicle for long driving with an impaired instrument board or without it.
Because how can it is possible you stay safe without the alarms, warnings, or indications.
In some regions or areas, it is illegal to drive without a digital instrument panel. You should immediately check out the operation because it is vital for your insurance.
The approximate price of replacing or changing it is between $900 to $1100. Keep one thing in your mind, that cost relies on the work condition, how qualified or experienced is your mechanic, your living area, and your Ford F150 make and model.
