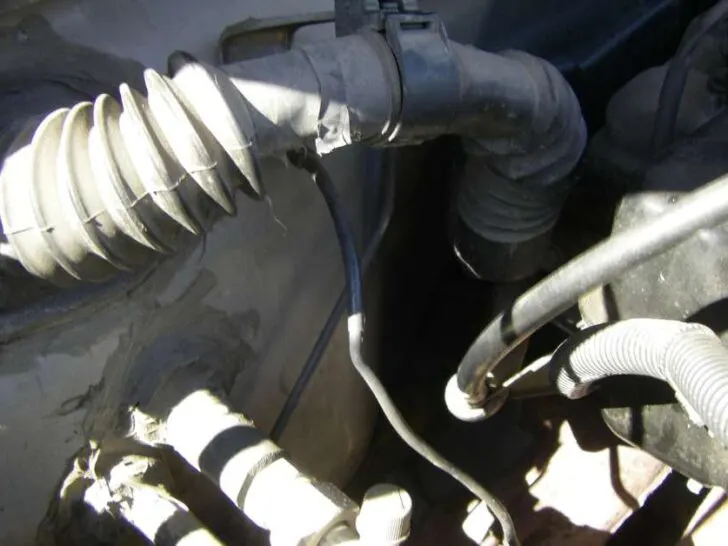

Chrysler Pacifica Ground Wire Locations

Chrysler Pacifica Ground Wire Locations

Ground wires are key parts of the electrical system of Chrysler Pacifica SUV and minivan models as they provide a return path for electrical current from all electrical and electronic systems. Keeping track of their locations is essential as most electrical problems result from loose, corroded, or broken wires.

Chrysler Pacifica 2004-2008 models have ground wires from the battery’s negative terminal to the engine, transmission, body, and firewall. 2017-2023 models have ground wires located at the instrument panel, interior fuse box, and driver and passenger seat tracks inside the cabin.

We will also cover the details about their testing methods, appropriate wire gauges, and the results of a malfunctioning ground wire on vehicle operation and performance.

Chrysler Pacifica Ground Wire Locations for SUV and Minivan models

You will find more than a dozen ground wires for the proper functioning of the electrical system of Chrysler Pacifica.

The 4 key areas to look for are inside the engine compartment, on its chassis or body, inside the cabin, and near the lighting components. We will cover the locations in these areas for its 2004-2008 and 2017-2023 models.

Engine bay ground wires

You will find a braided ground wire strap connected to the right side of the engine block. Other locations are from the negative terminal of the battery to the transmission and from transmission housing to the SUV frame in 2004-2008 models. In some models, the main ground is the negative terminal of the battery.

A few other wires are on the Powertrain Control Module (PCM) and from the starter motor on top of the engine block to somewhere near the air filter box.

A ground terminal under the battery holder has 3 eyelets to provide a connection point with different vehicle parts like the body or chassis. Furthermore, the Intelligent Power Module (IPM) has a ground point, which is a common point for other modules connected through wiring harnesses.

A wire from the fuel injector circuit to the electrical noise-suppressing device case has a ground point to the engine.

2017-2023 Chrysler Pacifica minivan models also have the same ground locations inside the engine compartment. Another additional point is on the fuse box of the minivan models.

Chassis and body ground wires

Common ground point locations are from the battery’s negative terminal to the SUV body, firewall, fender, and frame. The 2005 model has a wire from the engine to the firewall or from the transmission to the firewall.

In the case of towing vehicles, you will also find a wire on the trailer hitch. Moreover, a ground point is on the fender rail and the driver-side frame rail. For 2017-2023 models, the ground wire for the trailer hitch is at the end of the left side of the undercarriage.

Interior ground wires

Chrysler Pacifica has a ground wire from the radio or head unit of the stereo system to its chassis. Another location is with the side of the upper seat tracks for the power seat module below the memory-heated power-adjustable seats in the 2004-2008 models.

Metallic parts with no paint, like brake pedals below the dashboard, are also in a few other locations.

Besides these locations, there are a few points on 2017-2023 minivan models like the driver-side seat belt retractor tensioner, instrument panel, CAN communication bus, and interior fuse box on the left side of the dashboard under the instrument panel.

Lighting components ground wires

You will find a ground point under the headlights and taillights that connects with the battery’s negative terminal through the vehicle body. Wiring harnesses coming to the headlights have that point joined with the wire in connectors.

In some cases, you will find bulb sockets acting as ground through the metal body of headlights. Low and high-beam lights have separate wires in connectors.

There is also a black and light green wire for parking lights and turn signals, which are then connected to the solid chassis ground.

For the 2017-2023 models, the Body Control Module (BCM) left and right side wiring harness has wires for tail lights, and the front end module is for headlights and fog lights.

Recommended ground wire size for Chrysler Pacifica Models

The ground wire size for Chrysler Pacifica models depends on the specific location and its application. Usually, they are in the range of 2-14 AWG according to the connected part.

The thickest one will be 2-4 gauge from the battery’s negative terminal to the transmission or engine.

Keeping this wire of the same size is essential, especially for high current alternators, and under-sizing it will not start the vehicle at all or cause its insulation to burn because of a current that is more than its capacity passing through it.

Sometimes, it will also drain the battery, depicting a short circuit condition when you try to start your vehicle. For the 2004 SUV model, you will find mostly 14-gauge wires for the systems other than the main ground.

I have also found 10 gauge wire from the battery’s negative terminal to the vehicle’s body in some model years with low-current alternators. The manufacturer recommends using braids for engine grounds instead of solid wires.

Methods to test the ground wire for Chrysler Pacifica

The first step is visually checking the ground wires for corrosion, damage, or loose connections. You can also check its strength with your hand so that it is tightly secured in its place. Sometimes, too much dirt on the connections blocks their solid contact with the vehicle chassis.

You can use the multimeter’s continuity function if you have basic electrical knowledge. Touch one probe to the battery’s negative terminal and the other to the ground wire you want to test.

You can also use it to measure resistance and voltage drop across the wire. A high resistance value or voltage drop also indicates a weaker connection.

Consequences of a faulty ground wire on Chrysler Pacifica models

A defective ground wire in a Chrysler Pacifica can lead to many problems. The most common problem is engine cranking but no starting. It can be because of a faulty connection to the starter motor or other components.

For example, you will observe the flickering of dashboard indicators or lights, random messages on display, and stoppage of electronic accessories like the radio, power windows, and fans.

Some drivers have also complained about unintended activation or cancellation of functions like cruise control, wiper running, or turning ON the headlights.

Strange behavior of sensors and tire pressure monitoring relays can also result from loose, broken, or corroded ground wires on PCBs or individual systems.

One of my friends reported unexpected working of power seat controls and its adjustable pedal on a 2004 model Chrysler Pacifica because of ungrounded upper seat tracks.

A broken wire to the transmission control module (TCM) also causes damage to transmission parts and puts the vehicle into limp mode because of loss of control.

Sometimes, it requires new ground wires or strengthening of its connection, while other times, you can resolve the issue by simply cleaning the dirty wire connectors.
