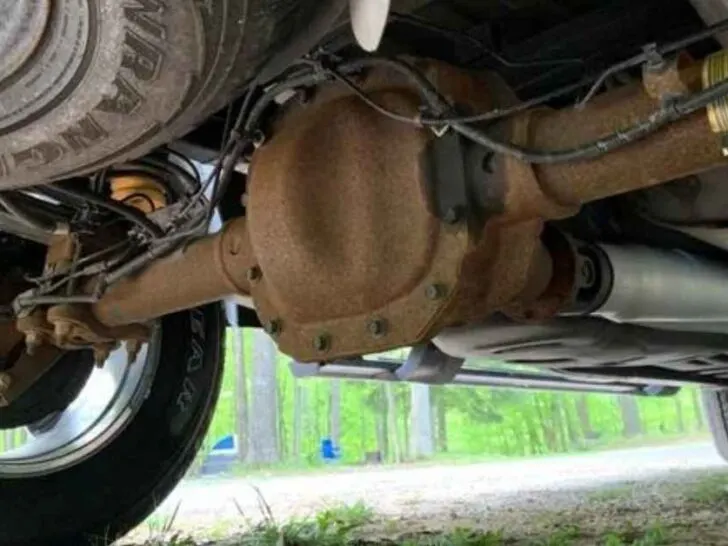

Ford F150 Undercarriage Problems

Ford F150 Undercarriage Problems

The undercarriage is the underneath part of the Ford F150, which is under the cabin and supports the bottom machinery. It comprises the truck’s chassis and regulates the functions of different components.

Ford F150 undercarriage problems include leakage of exhaust pipes, corrosion of the frame, broken driveshaft, damaged panels, and broken suspension.

The 2021 Ford F150 has had several recalls due to undercarriage problems.

Leakage of exhaust drain pipes

The exhaust pipes for the Ford f150 mount on the bottom side of the frame. As a result, they have exposure to road salt, mud, and debris.

Due to road hazards, the emission pipes lose their efficiency. You can assess an adhesive liquid under the truck frame.

Exhaust leakage is significant due to the effects of road dust. These exhaust pipelines have metallic composition.

The water droplets and dirt can causes rusting over them. The muffler malfunctions and leads to excessive leakage.

You can repair the cracks by sealing them with a high-quality sealing material. Hide the exhaust pipes with durable tape and wrap the holes.

Use high-performance clamps to join the broken components. Use aluminum patches to hide the open sections.

With professional help, you can replace the broken emission pipes on your Ford F150. Stop the current flow and leave it to cool.

Lift the vehicle and stabilize it over the hydraulic stands. Get under the truck and access the front pipe. It attaches to the Ecoboost with multiple bolts.

Y-pipe attaches to the front pipe of the exhaust system. With a socket, remove the bolts and pull the pipe.

Save it for future use and clean the mounting positions. Remove the nuts and bolts of the long Y-pipe.

Adjust the new pipe, install a new muffler, and fix the bolts. Connect the front pipe with the factory-installed assembly and secure it with screws.

Corrosion underneath Ford F150 due to road moisture

Corrosion on the underneath frame can cause a lot of issues. The thick rust layers can damage the machinery.

It can loosen the connecting points due to the multi-layer coating of corrosion. The bottom parts are usually metallic.

Road debris and water affect their appearance. In addition, due to a lack of high-quality paint, these components undergo corrosion.

Due to its thickness, the corroded material can penetrate the metallic parts and cords. As a result, it reduces their efficiency and their malfunctions.

Due to the absence of paint, the engine and transmission expose to rusting. To resolve the problem, park the truck in residential garages and stabilize the tires on smooth ground.

Adjust the jack, lift the truck and approach the bottom side. With a wired brush, scrape the removable rust from the frame.

With a scraper, brush off the corrosion patches. With a plastic covering, hide all the sensitive equipment.

With a pressure pipe, splash water on the Ford F150 undercarriage. Leave it for natural drying and wipe the bottom part.

Use a high-quality primer to prime the underneath frame. You can use high-quality converters of rust for these procedures.

Apply a corrosion reformer on the underneath surface. You can paint this area to protect against the effects of corrosion.

Broken parts and cranking noises of suspension

The suspension of the Ford F150 exposes it to rough terrains, road dirt, and water. As a result, its parts break due to internal wear and external pressures.

It produces loud cranking sounds, which annoy the driver. In addition, its front suspension has different problems due to broken struts.

It bounces and produces sounds due to malfunctioning shock absorbers. In addition, the mounting bushes break due to the excessive pressure of rough surface driving.

It reduces the cornering ability of the pickup truck and leads to sudden rolling. To resolve its faults, adjust the frame riding height during the bolt-tightening procedures of shock absorbers.

The front control arm of the undercarriage breaks due to sudden collisions. As a result, they bend and change their shape, which affects the truck’s performance.

It happens due to sudden crashes and excessive rotations of tires. Broken ball joints and damaged bushings can damage the front differential. Rust can cause wear of these front differentials.

To repair the bushings, you can apply an adhesive material. Apply grease on the differential connecting point.

For replacement, adjust the frame on blocks. Remove the ball joints with a 21mm socket.

From the spindle, remove the ball joints. Unbolt the two nuts that attach it to the frame.

Pull the suspension plates and slide in a new option. Reassemble the removed parts and stabilize the suspension.

The cost to replace the control arms on this pickup truck is about $616 to $765. The parts have a price of around $505 to $622.

A mechanic can charge you nearly $115 to $141. The spring leaf breaks due to internal friction and incorrect use.

Due to broken springs, the suspension sags and causes the leaning of the truck. Melt the upper rubber of the leaf spring with an artificial source.

Pull out the spring and adjust the new bushing and springs.

Broken driveshaft and damaged panels

The driveshaft and its connecting points break due to the excessive pressure of loads. It is a significant undercarriage problem that affects the truck’s performance and acceleration.

The effect of pressure is high on the center of the rotational shaft. Therefore, the incorrect adjustment of the load breaks the shaft.

Excessive torque flow, engine modification, and tire replacements can damage the shaft. In addition, its U-joints break due to excessive use and rusting.

You can replace the joints by putting the truck in neutral mode. To replace the driveshaft, jack up the truck and make a marking to align the shaft and pinion.

Align the transfer case with the transmission. Under the seal, adjust a pan and collect the fluid. Unbolt the fasteners and retaining bolts that attach the pinion to the driveshaft.

Pull it down and disengage it from the pinion. On the yoke mounts, apply a thin layer of grease.

Install a new shaft and push it in the transfer case. 2021 to 2022 Ford F150 has several recalls due to broken insulation panels. They become loose due to excessive heat levels and affect the shaft performance.

Remove the attachment bolts and pry off the panels. Install new panels underneath and support the rotating shaft.

Loosening and explosion of the gas tank

The gas tanks of the F150 have aluminum and steel bodies. They are part of the Ford F150 undercarriage and expose to road hazards.

They have aluminum and stainless steel-based straps which can hold the frame with straps. In addition, they are resting straps that protect the gas tanks from free falling.

They mount underneath the truck frame and expose to snow and water droplets. Road salt and moisture cause rust, which losses straps.

Their grip decreases, and they cannot support the container with the frame. Tighten the straps by adjusting them in their standard positions.

With professional help, you can replace them. Excessive heat and pressure cause the leakage of gasoline.

The fuel lines become active with a crash. The tank explodes due to pressurized conditions.

Due to the ignition of fuel lines, the tank explodes, which is dangerous. Stabilize the internal pressure of the fuel lines to prevent an explosion.

With a sufficient amount of coolant, you can stabilize the heat levels.
