O2 sensors are located in the Toyota Tundra’s engine compartment. These help control the oxygen level to provide the right air and fuel mixture ratio in the combustion chamber.

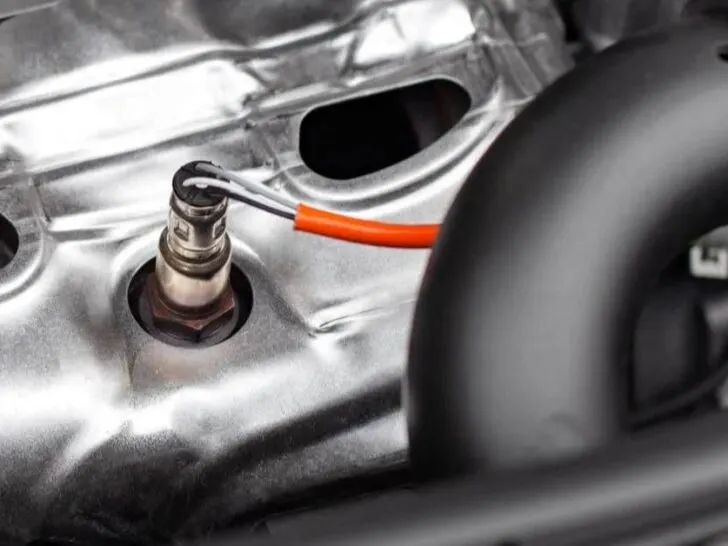

How Many O2 Sensors Does a Toyota Tundra Have? Toyota Tundra has four O2 sensors in its different models because of its V6 and V8 engines. Moreover, O2 sensors, which are used to collect the emissions, are located within the exhaust manifold. Upstream oxygen sensors are mounted below the exhaust manifold flanges and above the catalytic converter. However, downstream sensors are located on the exhaust pipe and beneath the catalytic converter.
My friend also faced the issue of faulty Oxygen sensors in his Tundra truck. He saw the black smoke from the tailpipe of the exhaust system because of the incomplete burning of the fuel mixture. In addition, the fuel efficiency of his truck also became low because of unburnt fuel.
He checked the engine compartment, and the oxygen sensor was contaminated because of the coolant leakage. He replaced the seals of the gaskets to stop the coolant leakage. He also removed the downstream contaminated sensor and changed it with a new one.
How many O2 sensors are present in a Toyota Tundra?
Oxygen sensors are an essential part of the engine compartment. They are necessary for efficient engine functioning, and faulty parts lead to poor fuel economy or check engine light illumination.
The number of sensors in your truck depends on their specific model and the type of engine present. Toyota Tundra is equipped with V6 and V8 engines with four oxygen sensors to measure the ratio of unburned oxygen in the exhaust system.
It sends the information to the electronic control unit to produce sufficient spark. These are present in the form of pairs, and you can see their two pairs, one on the front side of the catalytic converter and the other on its backside.
I also had the Toyota Tundra pickup truck because of my love for towing vehicles and adventurous tours. I sold it a few years back because I wanted to upgrade it with the new one.
I never faced any serious issues with it while hauling heavy loads. I was driving on the highway and felt the sudden drop in gas mileage and black smoke from the exhaust system.
I parked my truck on the safe side of the road and opened the hood to check the engine compartment. I was not aware of the failure of the oxygen sensors.
The engine temperature was fine, and the coolant ran correctly between the cylinder heads. I called the mechanic, and he connected the scanner tools to find the stem cause of the problem.
Problem codes on the scanner tools showed the failure of the oxygen sensor because of carbon deposits, which usually occur because of poor cleaning practices and frequent tours. He replaced the faulty oxygen sensor with a new one, and I continued my trip.
However, the number of O2 sensors in any vehicle also depends on the size and design of the engine and exhaust manifold layout.
The 2022 model of these trucks is equipped with a V8 engine design. However, older models have 3.2-liter turbo V 6 engines with ten-speed automatic transmission.
Where are O2 sensors located in the Toyota Tundra?
The oxygen sensor is an electronically controlled component that looks like a narrow band. These are located in the engine compartment of your vehicle.
Knowing their location is necessary because sometimes these become faulty, and you have to fix them. In addition, regular maintenance is necessary to remove the carbon deposits that usually come from the exhaust system.
These are mounted on the exhaust manifold, directly connected to the engine to collect emissions. Moreover, you can see these sensors in the form of pairs. Depending on their location, these are of two types, known as upstream and downstream.
These are located on the front or back side of the catalytic converters. The upstream pair is located on the exhaust manifold’s flanges and the catalytic converter’s upper side. On the other hand, the downstream one is mounted on the exhaust pipe and the lower side of the catalytic converter.
They measure the ratio of unburned air from the exhaust manifold to give signals to the electric control unit of your truck.
How do oxygen sensors work in Toyota Tundra?
Oxygen sensors need electric power for their functioning. Toyota Tundra batteries supply power to these sensors for their functioning and signal transmission.
These are mounted on the exhaust manifold and measure the oxygen concentration. It measures the unburnt oxygen ratio to send the information to the control unit.
It gives the information to the control unit, sending sufficient spark to burn air and fuel mixture. You can see rough idling and poor acceleration because of insufficient air and fuel mixture burning.
Unburnt fuel moves out from the exhaust pipe, and you can see black smoke from the tailpipe, which is harmful to the surrounding environment and is also against vehicle emission laws.
Do I have to replace all four O2 sensors?
You do not have to replace all of the four O2 sensors simultaneously. These are mounted on the exhaust manifold in the form of pairs, and it is better to replace them in pairs.
It is better to change the complete pair if one of the upstream and downstream sensors becomes faulty. My friend also told me this rule for efficient engine functioning.
He told me the right-side downstream oxygen sensor in his Tundra truck became faulty and replaced the whole pair. It shows that if the right side downstream sensor becomes faulty, it is better to replace the left side.
Moreover, the control unit sometimes sets the code for the other sensors, which can lead to incorrect information and signaling.
What is the difference between oxygen sensors 1 and 2?
Oxygen sensors are of two types, labeled as 1 or 2, depending on their specific location. You can see 1 and 2 in the form of pairs on their designated mounting point.
Sensor one is located close to the engine, while two is present near the rear side of the exhaust system. Sensor 1 measures the amount of air entering the exhaust system and then emits the specific voltage needed for their burning.
Upstream sensors located before the catalytic converter measure the amount of air, while downstream ones produce the corresponding voltage for its combustion.
