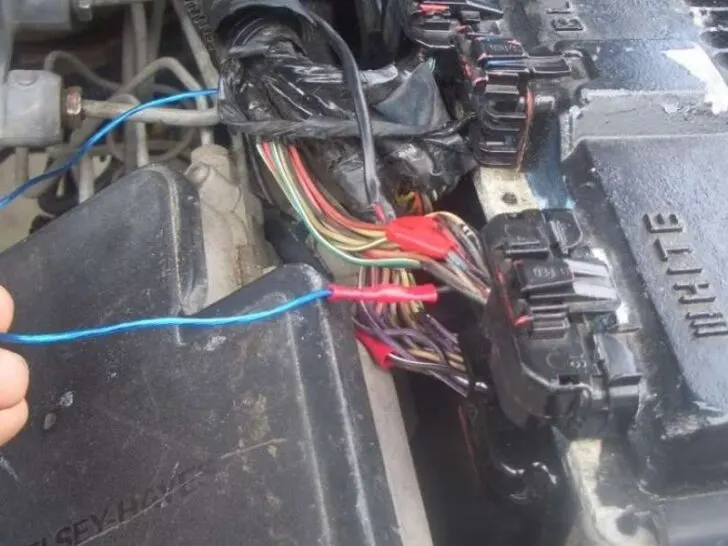

What is the Chevy Silverado Ground Wire Location?

What is the Chevy Silverado Ground Wire Location?

The ground wire in a pickup truck like Chevy Silverado plays an essential role in its electrical system. It provides the return path between vehicle battery, source of electric power, and all systems utilizing that power.

In case of a loose or broken ground connection, you will face several faults or unexpected responses of components like intermittent lights and other electronics. Therefore, it is vital to locate the ground wire.

What is the Chevy Silverado Ground Wire Location? The ground wire in Chevy Silverado is located on the battery’s negative terminal, engine block, radiator core support, cylinder head, and on the engine itself. In the passenger compartment, you will find it on the A-pillar, lower left side of the steering column, under the driver side door, and front passenger side. You will also find a few ground wires behind the trim panel on B and C-pillars. The location of ground wires is on the body mounts, fuel filler neck, and spare tire hoist bracket on the rear side.

Usually, the truck chassis or frame is a common point for connecting ground wires from various parts or systems.

Despite termination at the same structure, the health of individual ground connections is essential for the proper functioning of electronics and circuits.

Ground wire location on Chevy Silverado

There are 10-15 ground points from various parts of the Chevy Silverado to the truck body.

In addition, there can be a few additional points according to the engine and cab configurations. But mostly, they remain the same across all model years.

Battery

The battery acts as the primary power source for some of the electrical systems of the Chevy Silverado.

First, its negative terminal is attached to the ground to provide the return path for electrical current.

Then, it attaches with the truck chassis to complete the circuit. Locate its battery in the engine compartment, and you will find a negative battery terminal connected to the truck body with a black wire at some nearby point.

PCM

PCM acts as the brain of a Chevy Silverado, receiving electronic signals from various sensors and truck systems.

Therefore, it should have a solid and low resistance ground connection to prevent its malfunctioning.

You will locate it on the front or rear of the right cylinder head/block in the engine compartment under the hood.

It has the code name G103 and acts as the ground terminal for the main engine wiring harness.

Its corrosion or rusting will result in a fault indicator light with various trouble codes on the dashboard.

A-pillar ground

There are multiple grounds inside the truck cabin for various electronic circuits connected with the body.

You will find two ground wires on both left and right side A-pillars.

However, you have to remove the defroster to detect the 4-AWG wire connected with the Silverado frame with the help of a bolt or screw.

Engine block

The main ground wire is the battery’s negative terminal in the engine compartment. This wire bears the highest current due to the alternator and starter.

In addition, electric current to all systems and components like horn, radio, lights, and wipers passes through this wire to the truck frame.

Therefore, you need to use a high-quality wire connected to the truck chassis with a large gauge size.

I have found it attached to the battery’s negative terminal and then to the truck frame in some models.

Moreover, multiple ground wires will connect with the engine block on the lower left front and rear bottom side depending on the engine type.

Wiring Harness

Each wiring harness contains ground wire to provide a return path for that particular electrical or electronic system.

Therefore, you need to check for its connection point in the circuit. However, it will always connect with the ground on the Silverado frame with the help of a wire.

Under driver/passenger seat

Chevy Silverado models with power-adjustable driver and front passenger seats have wires underneath them.

You have to remove the seats to access the cables connected with the control circuit and electric motors.

Loose, corroded, or broken wires malfunction the system or intermittent operation.

On B/C-pillars inside the cabin

There are two ground wires on the left and right side C-pillars behind the trim panel inside the Chevy Silverado.

You have to remove the panels to locate them. There is also a ground wire on the right side B-pillar behind the trim panel.

Spare tire hoist bracket

Chevy Silverado has ground wire connected with spare tire hoist assembly.

Sometimes, you will also find 2 wires coupled with the left body mount under the vehicle right below the B-pillar. It is a part of the chassis harness.

Instrument Panel under the knee bolster

Place under the steering column has an instrument panel behind them inside the cabin of Silverado.

Additionally, you will find a ground wire connected with the knee bolster brace on the left side of the steering column. This is common for trucks built after Aug 14.

Radiator core support

You will find a wire attached with the driver-side body mount under the radiator core support.

It goes to the battery’s negative terminal and serves as a battery to frame the ground connection.

Fuel filler neck

On the truck’s rear side, you will also find a ground strap connected with the fuel filler neck of your truck. It acts as a ground path between fuel assembly and the frame.

Can we use the owner manual to locate the ground wire on Chevy Silverado?

The owner manual contains general information regarding the operation of the Chevy Silverado and its various parts with a routine maintenance schedule.

However, as far as the ground wire location is concerned, you need to refer to the wiring schematics of the truck or its service manual.

The service manual contains detailed information regarding various truck systems and location of each part, and how to access them.

While wiring schematics can help you trace the path of ground wire and its connection points.

Why is it essential to locate ground wire on Chevy Silverado?

Ground wires complete the loop for current flow to the various electrical and electronic systems of the Chevy Silverado from its alternator or battery.

Troubleshooting ground faults

Ground faults are a type of electrical fault frequent in aging trucks. High resistance values between truck cab, frame, engine, and chassis indicate a poor ground connection.

Moreover, often you will see on-board diagnostic (OBD) tools showing fault codes related to PCM or other systems without any reason.

Therefore, you have to locate the wires on the engine block, clean it of any corrosion and refix it to resolve the problems.

Preventive maintenance

These wires should be free of rust, tightly secured in their place, and show low resistance to be effective.

Therefore, it is an excellent practice to trace out all ground wires on a biannual or annual basis, clean them, repaint them and apply some sealant or dielectric grease to protect them as a part of preventive maintenance.

To replace corroded or broken wires

Loose, corroded, and broken ground wires pose serious problems regarding starting and proper functioning of the Chevy Silverado.

Therefore, in the case of various fault codes, you have to replace the cables to resolve the issues.

The first step is to locate the correct ground wire from a bunch of them at multiple locations throughout the truck.
