The Short-Term Fuel Trim (STFT) B1 is a critical parameter for V6 and V8 engine performance in all cars with OBD-II connectivity. It indicates optimal air-fuel ratios for combustion in modern vehicles with stringent emission control regulations.

What Is The STFT B1 Normal Range? The normal range of STFT B1 values is ±5% for newer engines, while it should be within ±10% range for older ones. However, if its value varies beyond ±18% – ±25%, it indicates a problem in the MAF sensor, fuel delivery, vacuum or exhaust systems, or oxygen sensors.

I have also explained the reasons for and symptoms of STFT abnormal values and how to restore the engine performance by restoring this value of fuel trim.

What does STFT B1 mean?

STFT B1 stands for Short-Term Fuel Trim Bank 1 in modern car models after 1996 with OBD-II connectivity. It is an important parameter related to engine performance, depicting a real-time adjustment made by the ECM to the amount of fuel injected into the engine.

It receives input from oxygen sensors to assess the air-fuel mixture ratio and changes the pulse width of the fuel injectors to control the amount of fuel in the cylinders.

In this way, it forms a closed loop based on the feedback from the sensors to ensure that the air-fuel mixture is within the optimal range for combustion.

Short-Term Fuel Trim is a percentage showing the quantity of fuel added or subtracted by ECM compared to the target fuel ratio based on the airflow data and fuel maps saved in the ECM.

A 2nd relevant parameter is Long Term Fuel Trim (LTFT) based on its average values for a longer duration, and the computer module adjusts the fuel maps based on this value for the correct ratio to maintain efficiency.

Positive and negative values of STFT

These values can be either positive or negative, showing their deviation from the base value of 0. It depends on various factors, including air quality, sensor performance, and wear and tear in the engine with time.

A positive STFT value indicates a lean mixture requiring more fuel than the base fuel map suggests to compensate for excess air or lesser fuel.

At the same time, a negative value means that the ECM is reducing the amount of gasoline to balance the rich fuel mixture due to reduced air or increased fuel.

These adjustments are made in the short term to account for immediate changes in engine operating conditions.

Normal values of STFT

In ideal conditions, STFT values should be 0, indicating that fuel supply to the cylinders is according to the saved fuel maps in the ECM as per calculated air-fuel ratios for optimal engine performance.

However, values deviate from this base value owing to numerous factors like engine condition, load, and car speed. For most vehicles with new engines, STFT B1 and B2 values around -5 % to +5% are normal. It is also normal from -10% to +10% for an older or used engine.

However, if it consistently goes beyond 10% on both positive and negative sides, it indicates some problems in the air or fuel streams of the engine.

Most ECMs are programmed to generate a fault code if these values consistently fall in the range of ±18% – ±25%, depending on the car make and model.

Role of oxygen sensor in determining the STFT B1 value

ECM measures the STFT B1 values based on the oxygen content in the exhaust of cylinder bank 1. Therefore, the oxygen sensor (O2 sensor) is a key component in determining this value. It measures the amount of oxygen in the exhaust gasses and provides feedback to the ECM as an electric signal.

If oxygen content is high or low, its output voltage goes low or high in the 0-1 volts range accordingly. The ECM then uses this information to adjust the fuel injector’s pulse width to maintain the desired air-fuel ratio.

If the oxygen sensor detects high air value in the exhaust, the ECM increases fuel delivery to even the lean composition. Meanwhile, in case of low oxygen in the exhaust, it reduces the pulse width duration to fuel injectors to compensate for a rich mixture.

Trouble codes associated with abnormal values of STFT

Abnormal STFT B1 values in the range of 18%-25% on either positive or negative sides can trigger diagnostic trouble codes (DTCs) that indicate potential issues with the fuel delivery system.

Common codes related to Short-Term Fuel Trim include P0171 for lean air-fuel mixture, showing positive values for too long. Meanwhile, the DTC P0172 activates when the system is too rich in case these values persistently remain negative.

Similarly, codes P0174 and P0175 are for the lean or rich mixture, respectively, for B2 values for cylinder bank 2. There are also generic codes P0170 for fuel trim malfunction for bank 1 and P0173 for bank 2.

Reasons for the abnormal STFT B1 range

Common causes include vacuum leaks, faulty oxygen sensors, wiring problems, fuel delivery issues like a malfunctioning fuel pump, defective fuel pressure regulator or blocked lines, clogged fuel injectors, or issues with the mass airflow sensor.

Moreover, spark plug misfiring and air leakage into the exhaust gas stream can also result in false readings from oxygen sensors, resulting in abnormal values. Therefore, identifying the root cause is crucial for effectively troubleshooting and resolving the problem.

Symptoms of abnormal STFT values

Symptoms of abnormal STFT values include poor fuel efficiency because of ECM, causing the fuel injectors to produce a rich air-fuel ratio constantly. On the other hand, a consistent lean mixture can cause rough idling, stalling, or hesitation during acceleration.

Moreover, it can also cause increased emissions because of improper fuel burning. It also results in a check engine light (CEL), and you can use the OBD-II (On-Board Diagnostics) tool to detect the fault code related to fuel trims. These symptoms can negatively impact engine performance and damage its components over time.

Method to check values of STFT B1

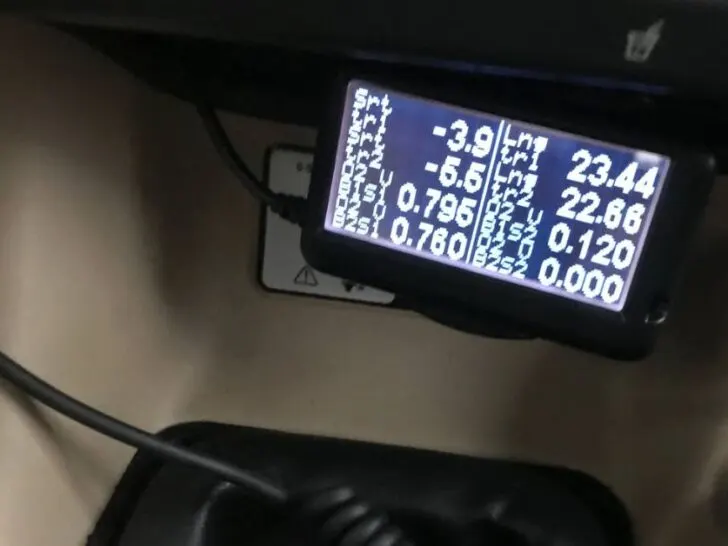

You can use an OBD-II scanner to check these values. The scanner can retrieve real-time data from the vehicle’s ECM. First, turn ON the engine and keep it idle for 2-3 minutes, and then start reading data from ECM.

Under the fuel trims option, it will display 4 values for STFT B1, B2, and LTFT B1 and B2. These values can abruptly spike with speed and load changes. Therefore, you should take readings at idle and multiple rpm values after they become stable.

Acceptable STFT difference between B1 and B2

When dealing with a car having a V6 or V8 engine configuration, there are two banks of cylinders, bank 1 and bank 2, with their positions varying according to the cylinder numbering and drive configuration of the vehicle.

It’s normal to see some difference in these values between both banks due to variations in exhaust characteristics and wear and tear in individual components like fuel injectors.

However, a significant and consistent difference indicates an issue that needs attention. A common rule of thumb is that the difference between B1 and B2 should be within 5%.

How do we restore normal values of STFT B1?

Restoring normal Short-Term Fuel Trim B1 values involves a systematic approach to identify and repair or replace faulty components.

You should inspect for vacuum leaks, check the oxygen sensors, and look for fuel delivery or exhaust system issues. Sometimes, tuning the engine or software update of the ECM is a remedial measure to resolve fuel trim-related problems.

Cleaning fuel injectors and resolving their timing issues can also restore their values to normal range. Furthermore, the last step is to monitor STFT B1 values to ensure they return to the normal range after completion of repair work.
