Many people prefer trucks like Ford F150 with a sunroof because it provides better sunlight exposure and maintains airflow.
However, some small rubber tubes close to its assembly help remove water falling on its roof.

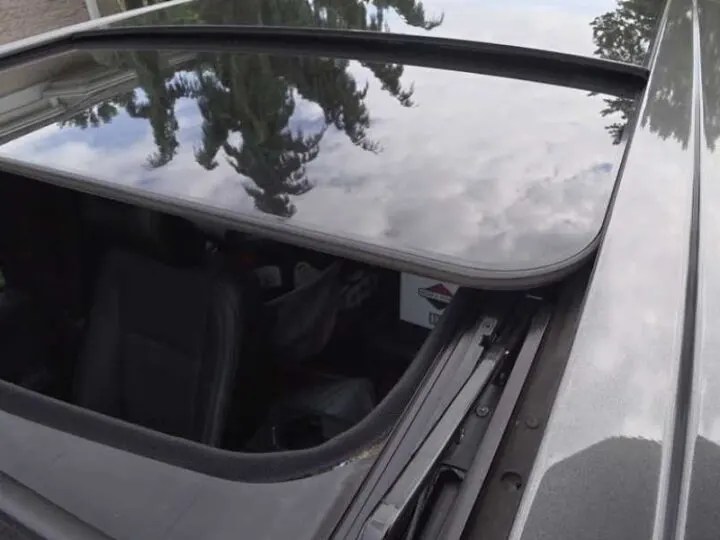

Where Are Ford F150 Sunroof Drains Located? Ford F150 sunroof drains are located close to the pan assembly on the sunroof. Moreover, there are 4 holes on the front and rear end of the track assembly that direct water outside the truck through a channelized system. This system runs inside the roof and passes through the dashboard to reach under the vehicle. Furthermore, it helps protect the truck interior and its electrical system from water damage.
Sometimes, you can face a leakage in the interior parts of the truck that leads to water everywhere inside it. This situation is unacceptable to any driver as everything gets wet inside the pickup.
Therefore, it creates an urge to determine the exact location of these drainage holes so that you can fix the problem.
- 1 What are sunroof drains?
- 2 What is the location of Ford F150 sunroof drains?
- 3 Why is the sunroof drain system present in Ford F150?
- 4 How does sunroof drains work in Ford F150?
- 5 Do Ford F150 sunroof drains require maintenance?
- 6 How many drain holes does a sunroof have?
- 7 How do you clean drain tubes on a Ford F150 sunroof?
- 8 Where does the Ford F150 sunroof drain exit?
What are sunroof drains?
The drain holes present close to the sunroof assembly remove the rainwater. It helps prevent the entry of water inside the vehicle.
Moreover, these small size tubes come built into the vehicle’s roof system.
You can see these drain holes in every truck with glass for sunlight exposure on the roof.
Clogging can occur inside these channels due to debris inside the tubes. However, removing clogs and initiating the smooth flow again is not difficult.
What is the location of Ford F150 sunroof drains?
A sunroof drainage system is commonly present in every model of Ford, like F150, F250, and F350 from 2000 to 2022.
Furthermore, it prevents moisture from entry to the trucks’ inside. You can see these holes on the corners of the pan assembly.
In Ford F150, these sunroof drains are present on both the front and rear ends of the assembly. These tubes move inside the vehicle and the inner door under the headliner.
Then, tubes go inside the dashboard from the corner and reach beneath the pickup. The rainwater falls on it and enters the channelized system.
It provides a proper channel to move outside the vehicle without damaging their inner environment.
So, the exact location of these channels is on the roof where it is present. It moves down inside the vehicle, but you cannot see the running tubes as a headliner covers it.
Why is the sunroof drain system present in Ford F150?
The sunroof drainage system is crucial to prevent damage and water overflow inside the vehicle. Other reasons include the lesser repair investment due to moisture damage.
Protection from water damage
This system helps protect the vehicle from moisture damage.
The headliner gets wet when water continuously drops inside it due to the absence of proper tubes.
The roof pillars and the carpet get wet, damaging the pickup’s inner body.
In addition, it allows the growth of mold on the wet surface, that have a bad effect.
Black mold is not suitable for you, so this system keeps you and your truck safe from damage.
Avoid water pooling
Water overflows inside the Ford F150 if there is no proper system to control water flow.
As a result, the moisture accumulates inside the vehicle and badly affects the driving experience.
It protects the floor carpet from excessive moisture that can decrease its longevity due to the moisture present on its surface.
Proper channelized system
It provides a channelized system starting from the sunroof and ending at any other region.
Water can reach unwanted regions of the truck without any proper tube system that directs it go out.
Moreover, it avoids leakage in the vehicle’s interior parts and protects them from damage like sparking.
Therefore, this tubing system protects the internal systems from damage.
This system helps save your money by avoiding the extra expenses on the vehicle.
However, you have to spend some money to fix the damage due to exposure to water.
Moreover, it reduces the cost of fixing the damaged carpet, headliner, and faulty electrical system.
How does sunroof drains work in Ford F150?
Sunroofs are properly sealed with the help of rubber bands present on all four corners of the assembly.
However, these rubber sealants get loose over time, and it cannot stop water from reaching inside the vehicle.
Then, these channels play their role in restricting its flow through small gaps.
Furthermore, these channels help remove moisture from the pickup that enters through broken seals.
These tubes carry away the water and channel it from inside the vehicle.
These tubes are present on the inner side of the rooftop that is not visible.
Then, it moves from the front and rear corners of the truck body close to the doors to its exit point present under the pickup.
Do Ford F150 sunroof drains require maintenance?
Every truck requires proper maintenance to work for a long, so it’s each part, like engines, brakes, tires, etc., requires great care and attention.
Similarly, it needs maintenance. For example, it can leak or block the flow of water when tiny needles or dirt particles build up inside it.
Most vehicle components require lubrication to reduce friction and wear.
In the same way, it needs proper lubrication for smooth flow inside the tubes.
You can use effective lubricants like silicon paste to smoothen the tracks.
In addition, you have to pay special attention to the accumulation of debris, grease, and dirt.
The dirt particles can clog the tubes and interfere with its flow. So, it is better to clean the tracks with a clean and dry rag.
You can also use an old toothbrush that is not in use to wipe out the grease and debris from tracks.
It is essential to assess the assembly regularly to avoid the problematic situation later.
How many drain holes does a sunroof have?
You can easily check the number of drain holes in the sunroof of the Ford F150. First, open it by popping it up in the air so that you can see the tracks.
You can easily see them by observing the assembly by reaching the glass panel on the top after standing on a stool.
However, you can check their location and number by dropping water on the assembly if they are not visible to you.
Pour liquid on the track where you think holes are present and notice it carefully.
It can help identify the exact location of holes in the drainage system.
You can pour liquid on any track area because you have to figure out the exact location and number of holes.
You can easily look at the 4 holes present in each corner of the assembly after this experiment.
2 holes are present on the front end of the pan and 2 on the rear end.
How do you clean drain tubes on a Ford F150 sunroof?
Check the blockage and clogging inside the tube when you see that water is not coming out of the tubes.
It is common for dirt particles to enter the tube and accumulate due to poor maintenance.
You can get rid of these clogs by blowing compressed air inside the channel.
In addition, squeeze the rubber channels to remove the moisture trapped inside them.
Compressed air can efficiently remove the clog, but you can use an alternative method if it does not work correctly.
Use a thin wire and slowly put it inside the tube until you reach the clog.
It can help disperse the clog and revives the functioning of its tubes.
Where does the Ford F150 sunroof drain exit?
Many people do not know about the exit point of the water that has passed through the tubes.
This confusion is due to the invisibility of the channels running from inside the vehicle.
Furthermore, the exit point of the sunroof drain is under the vehicle and releases liquid on the ground surface.
These channels reach underneath the pickup after passing through the dashboard on the vehicle’s front and rear ends.
You can see a small tube running from the door side and reaching the dashboard after removing the casing.
