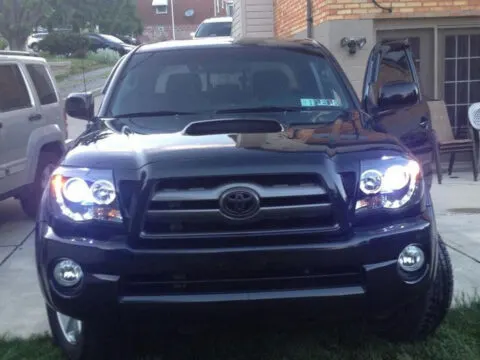

How to Install Spyder Headlights on Toyota Tacoma?

How to Install Spyder Headlights on Toyota Tacoma?

Many people like to install the Spyder headlight to Toyota Tacoma. The presence of T10 LED bulbs increases its brightness, and it is resistant to dust and moisture.

How to Install Spyder Headlights on Toyota Tacoma? You can install the Spyder headlights to Toyota Tacoma by removing the existing lights. Open the hood and remove the grille from the side of the truck. Unscrew the clips, nuts, and bolts with a screwdriver and lift the headlight slightly up. Disconnect the connection of side markers and the main bulb from the wedge connector. Finally, place the Spyder headlights and reinstall all the accessories.

You should modify your vehicle after some time if you want a striking appearance. You should install these if you are going on a long journey in darker areas, especially in the evening.

There is also a protective glass covering on the bulbs that reflect and projects the light. American prefers this light over the simple one because these are durable and long-lasting.

Easy steps to install Spyder headlights on Toyota Tacoma

It is better to gather all the tools needed for the installation of spyder headlights. You will need a quarter-inch ratchet, quarter-inch screwdriver, 10 mm socket, panel popper, or flat blade screwdriver.

If you do not have any tools, then you can borrow them from the workshop. Many people buy the universal kit and essential tools for Toyota Tacoma for a long journey.

Park your vehicle at the side, for example, in the garage, workshop, parking lounge, and outside of the home in an open area. Open the hood and give support so that it cannot fall on your hands while doing work.

Take a flat blade screwdriver and remove two push pins located on the top of the grille. Next, take out the 10mm bolts from both sides of the top of the grille.

Next, you will press the clip at the bottom of the grille with a flat blade screwdriver and release it to remove the grille. Finally, lift the grille and separate it from the front side of the Truck.

Put this grille at the side carefully, and do not leave it from a height on the floor. Although the manufacturer uses high-quality material, you should be careful and have patience.

After separating the grille from the Truck, you should go to the passenger side to look above the tire.

Take a 10mm flathead socket and rotate the bolts in an anticlockwise direction. Remove the pins and slide the wheel liner away from the truck body.

Lose the nuts and disconnect the connection of the headlight from the wheel liner. Next, remove the bolts at the back of the bumper and again come to the front side.

The side trim is present at the lower side of the spyder headlights and gives support and style to it. Press the push pins on the trims and separate them.

Set it at the side carefully and remove the 10 mm bolts on the light frame using a ratchet or wrench. Hold it in your hand and lift it about 2 to 3 inches up.

Disconnect the side marker from the side marker bob socket by rotating it in an anticlockwise direction.

Check the adjustment by placing it in the space and inserting the 10 mm bolts to fit. Generally, these are available in standard size for Toyota Tacoma.

Connect the socket with side markers and main light to the bob socket with a wedge connector. Reinsert the push pins and 10 mm bolts. It will secure the bottom bracket of headlights as before.

Reconnect it with the back of the bumper and place the bolts and plastic pins. You will not face any trouble if you remember adjusting bolts, push pins and clips.

Push the wheel liner or inner covering to its place and install the plastic pins. You should tighten each bolt and nuts with a screwdriver tightly.

You have to replace the one-side headlights and repeat this procedure with the other side. Next, adjust the clips at the sides of the trim that will hold the grille.

Before heading forward, turn on the lights and check the alignment and intensity. You can adjust these measures at this level. Finally, place the grille and lock the clips if all the things are alright.

Are Spyder headlights legal?

These non-smoked lights are legal according to the Satisfy Federal Motor Vehicle Safety Standard (FMVSS) and DOT compliant code number 108.

DOT fully approved the spyder headlights for trucks. You should replace the broken or old light with it to upgrade the vehicle.

The Society of Automotive Engineers (SAE) also approved the spyder products. In addition, the ISO-9000 and ISO-9002 also certify the use of these lights to enhance the wavelength of light rays.

The young generation likes to install colorful lights and bulbs in Toyota Tacoma to make it fancy. But, not every color of the headlights is legal on the main roads and in heavy traffic.

In the same way, you can use other colors if you are driving on the off-roads in America, but the law strictly restricted different colors on roads.

You can ride with colorful lights on private property, but the law is different in US states. For example, the color of headlights in front of the vehicle should be white or yellow, according to the California Vehicle Code section of 25950.

It is not only for the front lights but also for the taillights, brake signal, and turn light. The state allows the bluer xenon HID bulb, but it should not be too blue.

You should know about the laws and regulations of the state whenever you buy a spare part for your vehicle. There are some parts and things such as the use of high-intensity ban in many regions.

You have to pay the fine and penalties when you disobey the law. American rules are strict and for everyone, and you have to follow them.

Are Spyder lights good?

These are good as you will have sharp and distant light beams, especially in the night riding. The T10 LED bulb makes the path visible to you and makes your Truck visible to the other drivers.

The young generation prefers it because many youngsters enjoy the trips at night. The standard size for every version of Toyota Tacoma s available in the market.

The professional made it with a unique design and perfect assembly.

You can change them whenever you want as the manufacturer is ISO certified and OE approved.

The weatherproof feature makes them acceptable at a high level.

You can see the front view by turning the lights on in heavy rain. It is resistant to sunlight, and harsh environmental situations as the manufacturer used high-quality materials and covering on it.

Are Spyder headlights brighter?

These are brighter, but you can control the beam setting according to the need. For example, you should turn on the high beam setting when you drive the Truck on highways and in a darker area.

It will make the distant sight visible for you during fast driving. Moreover, you can switch to the low beam setting when you are driving in the urban area.

You will get a smooth driving experience by the installation of these excellent headlights. The most significant thing is that it cannot blur other drivers’ vision coming in the opposite direction.

Can you put HID in Spyder headlights?

HID is a built-in thing in some headlights, and its function is the formation of the light beam. You cannot put HID in the spyder headlight until it is written on the package.

In general, the manufacturer does not allow you to put HID (Xenon) bulb in this light.

It makes the people blinds and spread the light beam all-around when you install HID in the projector. The coating of the projector bowl is not able to reflect the UV rays coming from the sun. It lacks the sharp cut-off of a projector that is not able to make a sharp beam.

How do you check Toyota Tacoma headlights’ alignment?

The headlight aims to make the front side of the road visible for you while driving. It makes a clear view, especially at night when you are going through the rural areas.

You will need the lights in the daytime during rain, smog, and fog. Sometimes it comes and is bent down after 3 to 4 feet and sometimes after 6 to 7 feet.

It is not acceptable and causes disturbances during driving. Park your Toyota Tacoma at a place to check the alignment of the light beam. This way you can make your truck headlights better.

The vehicle should be 3 to 7 feet away from the wall. Measure the length from the floor to the light bulb. Turn it on and measure the reflection on the wall.

If it is equal to the measured value of the Truck, then it is alright; otherwise, you can adjust by opening the hood and setting the adjustment nuts.
