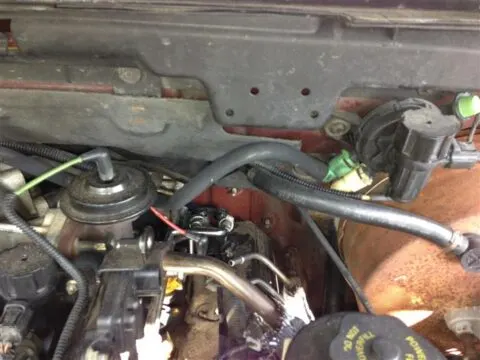

How to Replace Ford F150 Vacuum Line?

How to Replace Ford F150 Vacuum Line?

Ford F150 vacuum line connects to several different systems within a truck to help it run properly. It also connects other parts such as the carburetor, fuel injectors, and even the PCV valve.

How to Replace Ford F150 Vacuum Line? You can replace the Ford F150 vacuum line by locating the device. It is present at the back of the intake manifold. There may be more than one vacuum line. Remove the screw using a screwdriver, you can also pull it if there are no screws. Remove the line from both of its connection points. Bring out the new one, and put its one end on the hole of the intake manifold and the other end at the brake booster. Start the engine and check if the truck works fine or not.

It makes the entire engine function properly, and without it, there would not be any vacuum to supply air.

Working of Ford F150 Vacuum Lines

A vacuum line aims to provide a pathway for the vacuum to reach components through a closed system.

It is commonly found in truck systems but is also used in cars. It is a part of the intake manifold and is attached to the throttle body.

It makes sure that all these components are well-connected to each other so that they can easily flow fuel or air into your Ford F150 combustion chamber.

Combustion occurs when a mixture of fuel and air from the line mixes and is ignited by a spark or flame.

In fuel combustion engines, such as those used in trucks, air compression from a piston forces fuel into a cylinder during each intake stroke.

The compressed air draws fuel vapor from the tank through the carburetor to the combustion chamber, where it mixes with oxygen from the intake manifold. It is a very crucial step that helps in starting the engine.

It is vital for the proper functioning of the braking system and transmission, among other things. It regulates air pressure as well as directs it from various sensors and actuators.

The vacuum acts like a second throttle that opens or closes based on how much air is present in the intake manifold.

It is responsible for controlling the amount of vacuum in the brake booster, and it makes sure that it stops when you step on the brakes.

It works by drawing air from the intake manifold and sending it through a tube to a check valve, allowing air to flow into the brake booster only under pressure.

Once there is enough pressure on the brake pedal, this tube changes direction and sends air back into the intake manifold.

This process repeats itself until you stop pressing on your brakes. Vacuum is required to operate the clutch on some trucks and certain accessories like power windows as well.

Steps to replace the F150 Vacuum Line

You should follow some preventive measures before replacing the pipe. For example, if your F150 stops working during driving, try to move it to a safer place away from highway traffic.

Always keep an extra pair of latex gloves, glasses, and a small piece of cloth. You also need to have a screwdriver kit in your truck.

Now put the gloves and glasses on. Do not turn the engine ON until you have replaced the line. Instead, press the button inside the pickup to pop the hood.

Unplug the battery cables for safety purposes. You already know the location of the hose.

You need to know which hose you want to replace. Next, you need to remove this hose from its connection point.

You can pull the line out from the intake manifold, or you can use a screwdriver and unscrew it from both of its connections.

Now, take out your newly bought vacuum line. Put one end on the intake manifold and the other on the connection of the brake booster.

Tight the screws using a screwdriver. You can also use a screwdriver machine; in case you want to save time.

Look out for any symptoms of a bad vacuum line. In case the rpm does not change at an idle condition, this means the problem is solved.

Driving Your Truck with A Bad Vacuum Line

There are many reasons why vacuum lines are installed on the F150, but the most important is that they ensure no leakage in your vehicle.

It is better to check the hose to see if it has any damage or wear and tear to avoid problems with your engine performance.

A damaged pipe can cause all sorts of problems with your vehicle. It is one of the most common things to break on a car, and it can cause some serious damage if left unattended for too long.

You can drive your truck with a bad vacuum line, but it is not recommended. If you drive it with a bad pipe, the pipeline may break because of its continuous use.

You can try to seal the hose, but it will only be a temporary solution. It will again start leaking. You can only use it if you encounter an emergency otherwise, it is not a good practice.

You should keep a repairing kit in your F150. Then, in case you are far away from home and cannot go to the mechanic shop, you can easily repair it yourself.

What is the location of the Ford F150 Vacuum Line?

When you know that there is some issue with your vacuum pipe, the first step is to locate the vacuum port on the intake manifold. This part is a little hard to find.

When you open the hood of your truck, you will see many parts, including the intake manifold.

An intake manifold works by sucking in air from the outside environment and subsequently mixing it with fuel from the carburetor.

It is a metal body structure with four cylinders on one side, and there is one opening on the left side.

Intake manifolds are components of a vehicle’s engine responsible for distributing the air and fuel mixture to the cylinders.

It is usually located between the throttle body and the cylinder head. The throttle body is present on the left side of the intake manifold.

They provide vacuum to a lot of components and are essential for their working.

There may be a rubber cover on these lines. Manufacturers use this cover to protect the hoses.

Indication of a Bad Vacuum Line

You could lose power steering or even stall out while driving. In addition, when you drive a truck, especially on long journeys, the vacuum lines of your truck can get damaged or worn out over time.

It means that your truck will not run properly because of a vacuum leak. If you notice any abnormal noises or smells coming from under the hood, make sure it is fixed as soon as possible.

Your Ford F150 will start consuming more fuel than ever. Your vehicle will not provide you with good fuel efficiency.

There will be an irregular air and fuel ratio as fuel and air mix to start the combustion process because of the pipe leak.

You will have to fill your fuel tank regularly. Your Ford F150 will start losing its power day by day.

The combustion process is not happening, and your engine is struggling to get the required power.

There are few sensors installed in your engine that measures the amount of air flowing in and out.

These sensors also check whether a particular part is working correctly or not. For example, in case of a vacuum lines leak, the sensors will send a signal to you.

A light will start blinking on your dashboard, indicating that something is wrong with the engine.

You should not ignore this signal because it can cause many problems for you if you are not careful.

What Are the Possible Causes of a Bad Vacuum Line?

You should inspect the vacuum hose regularly for cracks or damage, which could cause leaks and result in poor performance of the F150..

The symptoms may occur because of a damaged pipe. The hoses are made of rubber or plastic.

The engine produces a lot of heat and eliminates gases. This heat will damage the rubber lines and can cause a hole in the pipe. In addition, the throttle body that allows the air to go in and out of the intake manifold may stop working.

There may occur some issue with the intake manifold. For example, the ends of the pipe may get loose, and the air will start leaking from that area.

You can use different methods to find the leak. You can spray water on the suspected areas while the engine is running.

The water will get sucked through the leak area. You can also use a gauge meter or a vacuum tester.

These devices can easily identify the location of the leak. In addition, you can replace the hose with a new one if it is damaged or cracked.

Inspecting the hose allows you to catch problems early, which saves time and money when compared with waiting until failure occurs

How much does it cost to replace the F150 vacuum line?

The estimated cost of replacing the vacuum line is around $35 to $50, depending on where you live and what type of truck you own.

It also depends on the condition of your engine and whether or not you need any other components.

In case your vehicle is older and exposed to the elements, it could cost anywhere from $100 to $450 to get a new one put in.

The replacing process of vacuum lines is straightforward. It will not take much time if you know different parts of your engine.

On the other hand, if you are a newbie and see all these parts for the first time, replacing the line will take longer on your F150.

It also depends on the availability of the parts; if you have a new one available, you can replace it within 15 to 20 minutes.
