Toyota Tundra Oil Pressure Gauge Not Working

Toyota Tundra Oil Pressure Gauge Not Working

The oil pressure gauge in Toyota Tundra reads the correct oil pressure and indicates engine control conditions.

Toyota Tundra oil pressure gauge does not work due to broken switch of oil filter, entrapped air, and dust particles clogging in the filter. Also, it happens due to malfunctioning electric wires and different oil pressure. Furthermore, the oil gauge fails due to incompatibility of oil with gauge, broken gauge, and timing belt replacement.

In addition, the problem started in 2004 and 2005 Toyota Tundra with more than one thousand complaints in past years.

However, the new and upgraded models have minimum chances of oil gauge failure, but pressure changes and internal filter clogging lead to these problems frequently.

The repairing and replacement of this particular equipment are tricky due to advanced electric wiring.

Also, the busted gauges are a result of winter weather conditions.

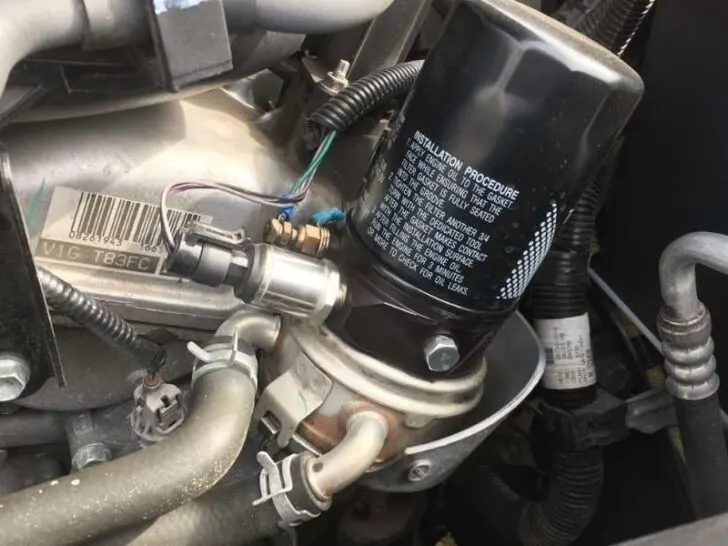

Broken filter switch

Generally, an oil filter switch is protection equipment that resists engine damages.

Also, it works as a pressure sensor device with a switch inside the structure.

It has a single, double and triple pin configuration depending on the engine design. It has a direct connection with the engine circuit.

It monitors and handles the oil pressure and indicates the readings by turning them off and on. But, excessive usage, sudden short circuits, and a broken switch cannot provide pressure fluctuations.

As a result, this gauge fails to perform adequately. The broken switch cannot measure the standard oil pressure and stops sending signals to the equipment.

The switch of the oil filter is a tiny component, but it has significant functions. Also, the repairing of a broken or burnt gadget is challenging.

You can replace the broken switch by removing it from the circuit.

Add a new switch and connect it with the electric supply. You can access the readings on the gauge after such replacement.

Clogging of oil filter

A non-working gauge can either read the lowest oil pressure range or provide high range results.

In addition, both conditions indicate that the gauge is not functioning appropriately.

The oil filter separates the high-quality oil from different components and keeps it clean.

It also sends oil to different sections of an engine through pressure conditions.

It has a direct connection with the pressure gauge that provides a level of oil pressure. But, clogging of the oil filter destroys the overall working mechanism. The air entrapping happens due to an open or broken fuel cap.

Also, dust particles clog the passage of the air filter. As a result, it fails to send signals directly to the oil gauge. As a result, the gauge does not work, but the problem exists inside the system.

The problem requires an instant solution, and the person can lose oil and internal machinery. Therefore, cleaning the internal components is suitable for these procedures.

You can consult a mechanic and allow him to clean and de-clog the oil filter. Remove the entrapped air and also change the material and add new and high-quality oil.

Damaged electric wires

Typically, a Toyota Tundra oil pressure gauge is an electrically empowered device.

Also, it has electric signals crossing through electric wires. The electric cables directly connect with the pickup battery.

These wires have insulations that keep them safe from external harmful effects and internal current fluctuations.

But, in a few conditions, the electric cables break due to electric surges, and the top protection layer breaks down.

It results in an inappropriate performance of the gauge. It gets mixed signals of pressure conditions and never shows accurate measurements.

Also, it does not follow the actual reading according to internal oil pressure, and it confuses the user.

However, the repairing and protection of these electric wires are advisable. But, they can break due to excessive use and electric voltage fluctuations.

In addition, stabilize the truck battery and provide smooth current signals.

Also, replace the damaged electric wires with new and high-quality ones. Take the help of a professional mechanic to handle the complex wiring and internal connections.

Different oil pressure

The oil gauge collects readings according to the internal oil pressure under the limits. Therefore, it provides high range limits while the oil tank is full.

Also, the calculations fluctuate according to the decreased levels of oil. A few people use low-grade oil during replacement conditions. However, the low-grade oil is not compatible with the engine and its components.

The oil pressure gets abnormally high, and the gauge stops working. Also, it does not get signals from the pressure compartments. In such situations, the oil replacement resolves the problem.

Also, you should know the high-quality and compatible oil grades for your pickup truck.

Take expert advice while selecting oil for your Toyota Tundra engine. Immediately remove the low-grade oil from the engine because it can damage the other components.

Broken gauge and its components

Typically, it is present on a dashboard and receives signals from the pressure control unit.

Sometimes, the device breaks due to sudden high oil pressure and a cold engine.

Moreover, the oil loses its viscosity with time, and the gauge reads low values. Therefore, the oil change is one of the best ways to preserve the oil gauge from further damage.

In addition, internal device faults stop the oil gauge from standard performance.

It happens due to constant oil fluctuations and persistently low oil pressure. In these conditions, replace the oil gauge with new and high-quality equipment.

Also, install the device with professional help because it is a complex procedure.

First, stabilize the engine and connect the equipment directly with the oil filter and pump.

Check the engine and its internal procedures before altering the equipment. The built-in devices are resistant to damage and tearing. But, differential pressure adversely affects their performance.

Incompatibility of oil with gauge

The gauges stop working due to the incompatibility of oil with their internal performance. However, the Toyota Tundra oil gauge reacts to high-quality engine oils.

But, the oils with petroleum composition start degrading after a particular time.

It happens due to excessive heat inside the engine. The pressure drops down immediately, and the oil becomes contaminated.

The chemical composition of the oil changes due to high-temperature conditions. Therefore, the gauge reads zero at these points.

In such circumstances, check the engine settings and access the oil level. Then, fill the tank to enhance the pressure conditions.

The replacement of degrading petroleum-based oil is one of the best options. As a result, the oil and gauge become compatible, and the system works.

Timing belt replacement

Typically, a timing belt controls the synchronized movement of a camshaft with the crankshaft. Moreover, the V-6 and V-8 engines have these chains, and the 2010 Toyota Tundra engine has a built-in timing belt.

However, several people replace the timing belt because it gets damaged with time and excessive usage. As a result, the gauge failure happens because the performer lacks mechanical skills and precise expertise.

The electric wire crosses a path near the oil filter, but it wears during the belt replacement conditions.

As a result, the timing belt becomes stable, but the system cannot send pressure signals to the gauge.

In such conditions, access the filter and check the crossing electric wires. Now, remove the broken wire and alter it with a new one. Take mechanic’s help and spend a few dollars to get a non-problematic and working oil gauge.
